(88.100.35[102]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ HYDRAULIC CONTROL, PEDAL, CONTROL

Запчасти Case CX250D LC LR (88.100.35[102]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ HYDRAULIC CONTROL, PEDAL, CONTROL (88) - ACCESSORIES

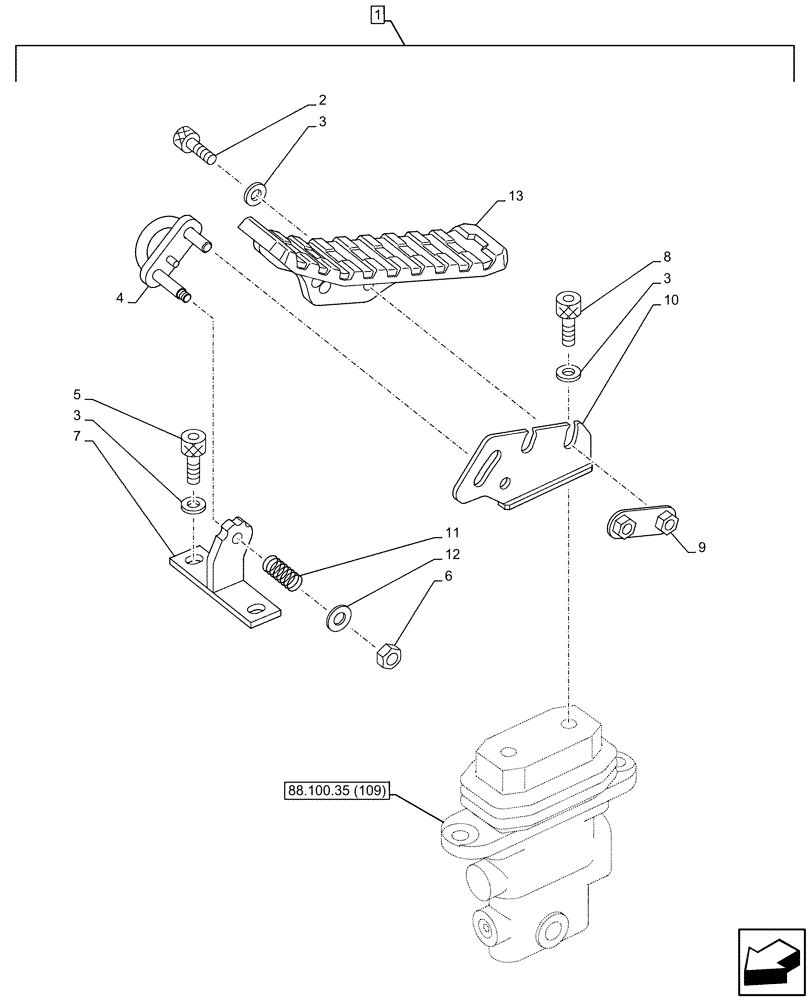

Схема запчастей Case CX250D LC LR - (88.100.35[102]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ HYDRAULIC CONTROL, PEDAL, CONTROL (88) - ACCESSORIES
5
2
3
8
1
4
6
11
9
10
12
7
3
88.100.35 (109)
3
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP607-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 13

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ24800

BOLT

M10 x 30mm

2шт.

3

150604A1

WASHER

6шт.

4

KHJ10701

ARRESTER

1шт.

5

108R010Y016R

BOLT

M10 x 6mm

2шт.

6

157740A1

NUT

1шт.

7

KHJ10711

SUPPORT

1шт.

8

165404A1

BOLT,Hex Skt, M10 x 20mm

2шт.

9

KHJ24780

BRACKET, SUPPORTING

1шт.

10

KHJ24750B1

BRACKET

1шт.

11

KHJ10721

SPRING

1шт.

12

159500A1

WASHER

1шт.

13

KHJ13850

PEDAL

1шт.
