(88.100.35[104]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ HYDRAULIC CONTROL, BOOM, LINE

Запчасти Case CX250D LC LR (88.100.35[104]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ HYDRAULIC CONTROL, BOOM, LINE (88) - ACCESSORIES

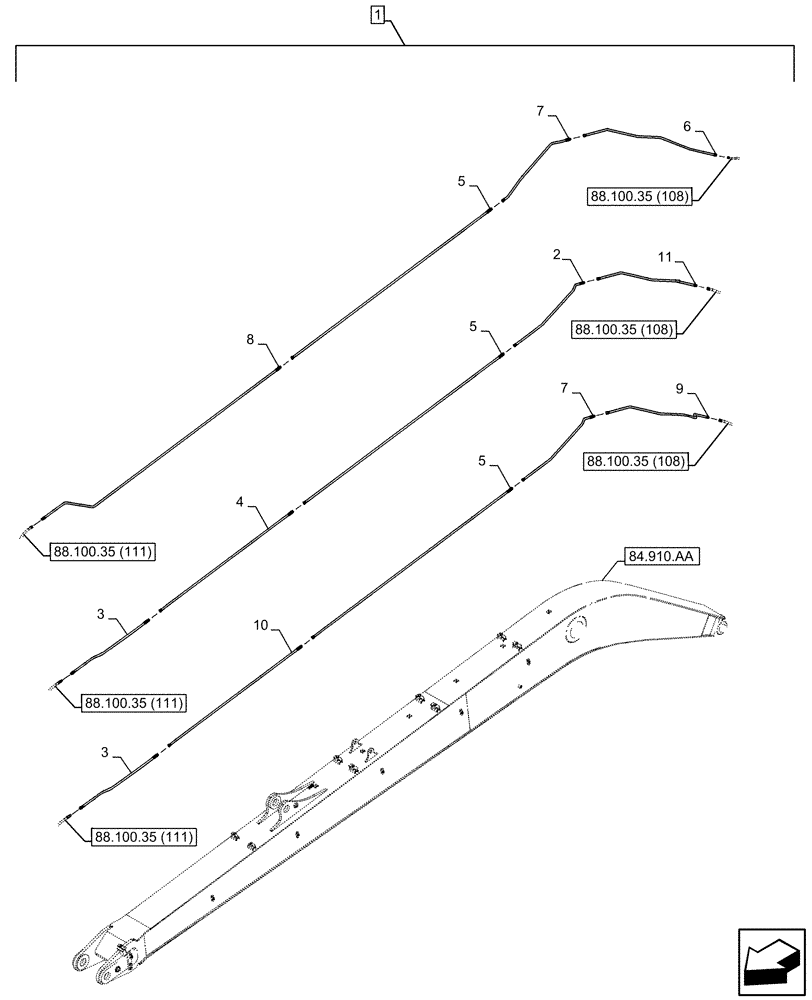

Схема запчастей Case CX250D LC LR - (88.100.35[104]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ HYDRAULIC CONTROL, BOOM, LINE (88) - ACCESSORIES
3
3
9
88.100.35 (111)
7
5
10
7
88.100.35 (108)
84.910.aa
88.100.35 (108)
6
2
1
88.100.35 (111)
11
88.100.35 (108)
8
5
88.100.35 (111)
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP607-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KBV39310

TUBE

LH

1шт.

3

KBV39330

TUBE

2шт.

4

KRV44210

PIPE

LH

1шт.

5

KBV39320

TUBE

3шт.

6

KBV39340

TUBE

RH

1шт.

7

KBV39350

TUBE

2шт.

8

KBV39360

TUBE

RH

1шт.

9

KBV39370

TUBE

Drain

1шт.

10

KRV44250

PIPE

Drain

1шт.

11

KBV39300

TUBE

LH

1шт.
