(88.100.35[112]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ HYDRAULIC CONTROL, ARM, LINE, STOP, VALVE

Запчасти Case CX250D LC LR (88.100.35[112]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ HYDRAULIC CONTROL, ARM, LINE, STOP, VALVE (88) - ACCESSORIES

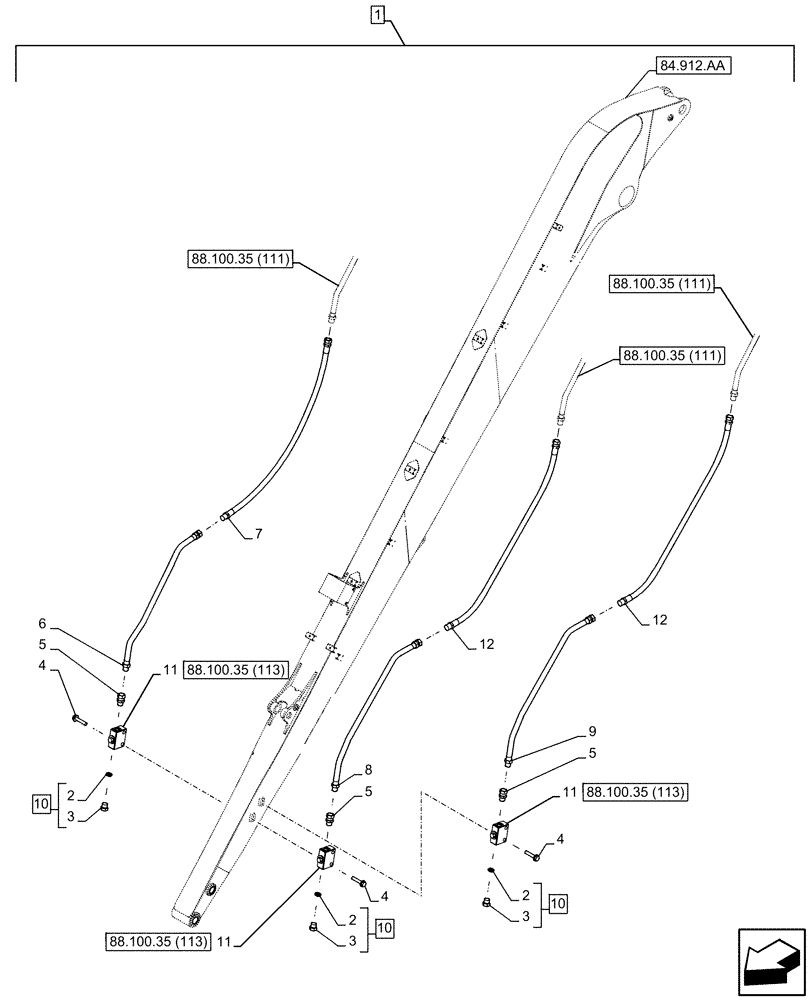

Схема запчастей Case CX250D LC LR - (88.100.35[112]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ HYDRAULIC CONTROL, ARM, LINE, STOP, VALVE (88) - ACCESSORIES
88.100.35 (111)
88.100.35 (111)
10
8
9
10
11
12
5
5
4
11
3
84.912.aa
1
6
88.100.35 (113)
88.100.35 (111)
2
4
3
5
7
4
11
2
10
88.100.35 (113)
88.100.35 (113)
2
12
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP607-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 12

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

150539A1

O-RING

3шт.

3

NSS

NOT SOLD SEPARAT

Plug, Incl in 10

3шт.

4

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

M12 x 60mm

6шт.

5

KHJ1939

FITTING

3шт.

6

KBV37970

PIPE

RH

1шт.

7

KRV43980

HYDRAULIC HOSE

12mm ID x 1000mm

1шт.

8

KBV37950

PIPE

LH, Front

1шт.

9

KBV37940

PIPE

LH, Rear

1шт.

10

159085A1

PLUG

ASSY, G1/2", Incl 2, 3

3шт.

11

KHV10440

VALVE

ASSY

3шт.

12

KRV46800

HYDRAULIC HOSE

2шт.
