(88.100.35[210]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, LINE

Запчасти Case CX250D LC LR (88.100.35[210]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, LINE (88) - ACCESSORIES

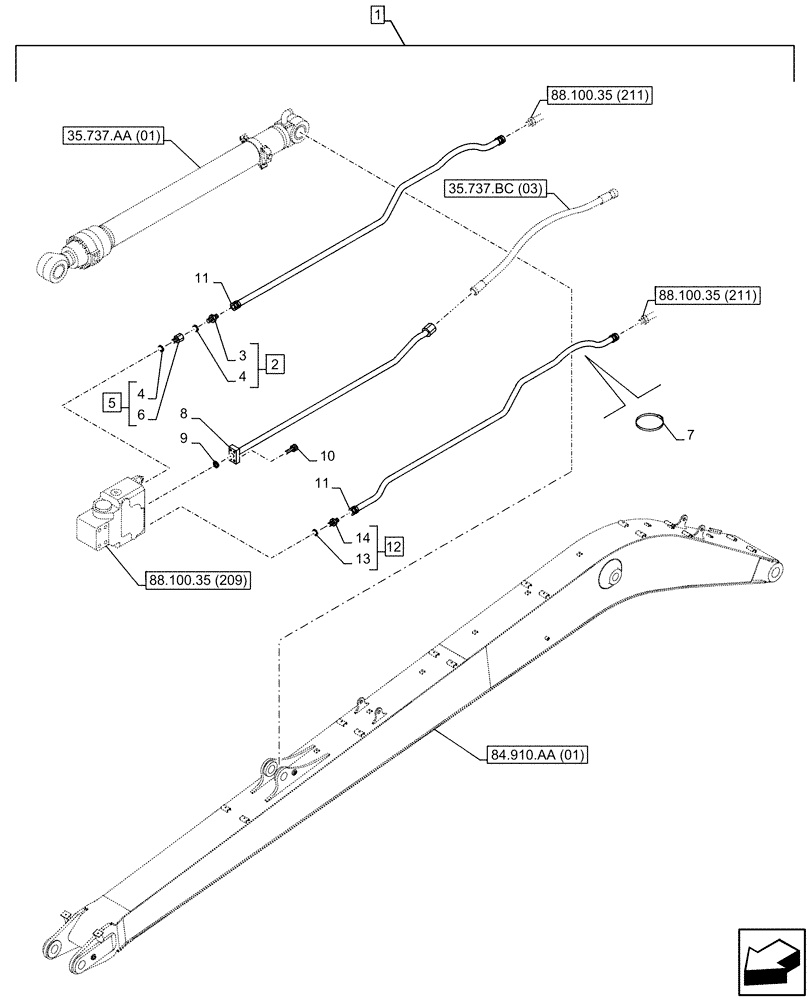

Схема запчастей Case CX250D LC LR - (88.100.35[210]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, LINE (88) - ACCESSORIES
4
84.910.aa (01)
35.737.bc (03)
1
11
10
88.100.35 (211)
3
8
2
14
13
88.100.35 (211)
5
4
12
6
7
9
11
35.737.aa (01)
88.100.35 (209)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP608-00

CONSTRUCTION DIA

Hose Burst Check Valve, Incl 2 - 14

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

152747A1

ADAPTER

ASSY, G1/4" x 3/8", Incl 3, 4 (Qty 1)

1шт.

3

NSS

NOT SOLD SEPARAT

Fitting, Incl in 2

1шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

5

162525A1

STUD

ASSY, G1/4" x G1/4", Incl 4 (Qty 1), 6

1шт.

6

NSS

NOT SOLD SEPARAT

Stud, Incl in 5

1шт.

7

150067A1

MOUNTING CLIP

12шт.

8

KBV18380

HYD TUBE

1шт.

9

155211A1

O-RING

1шт.

10

862-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

4шт.

11

168852A1

HYDRAULIC HOSE,3100.00 mm

3100mm

2шт.

12

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, G3/8" x G3/8", Incl 13, 14

1шт.

13

154475A1

O-RING

1шт.

14

NSS

NOT SOLD SEPARAT

Fitting, Incl in 12

1шт.
