(88.100.35[211]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, LINE

Запчасти Case CX250D LC LR (88.100.35[211]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, LINE (88) - ACCESSORIES

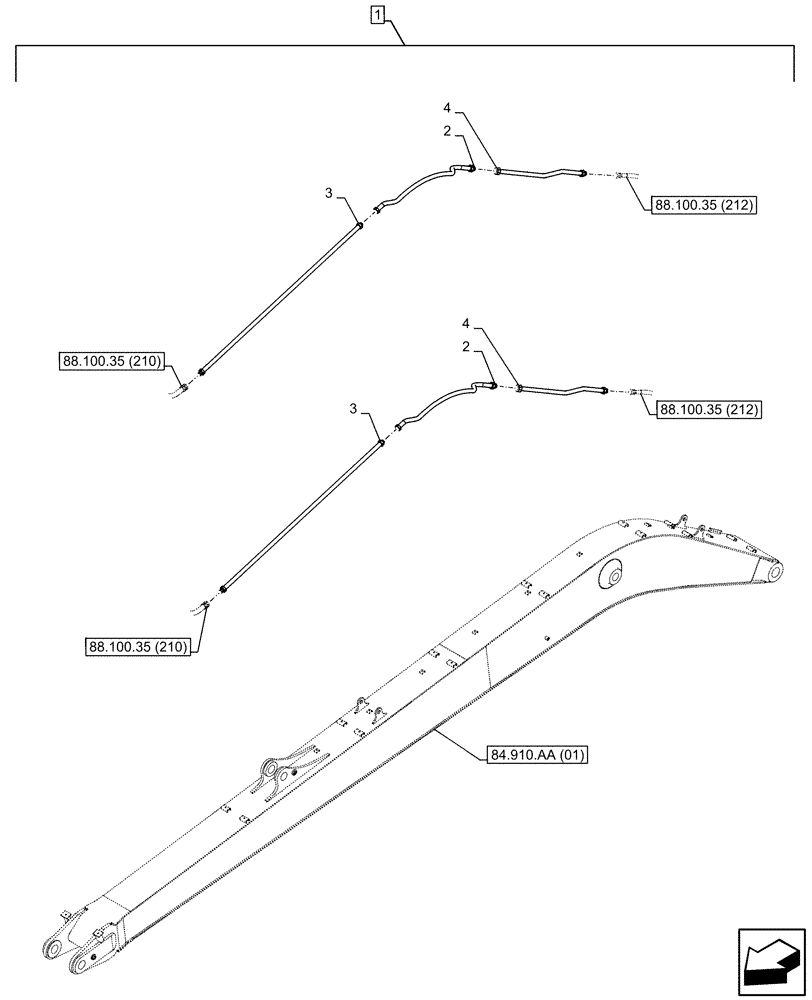

Схема запчастей Case CX250D LC LR - (88.100.35[211]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, LINE (88) - ACCESSORIES
2
88.100.35 (210)
88.100.35 (212)
88.100.35 (210)
4
4
3
88.100.35 (212)
3
84.910.aa (01)
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP608-00

CONSTRUCTION DIA

Hose Burst Check Valve, Incl 2 - 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ1694

HYDRAULIC HOSE

2шт.

3

KBV17070

HYD TUBE

2шт.

4

KBV17060

HYD TUBE

2шт.
