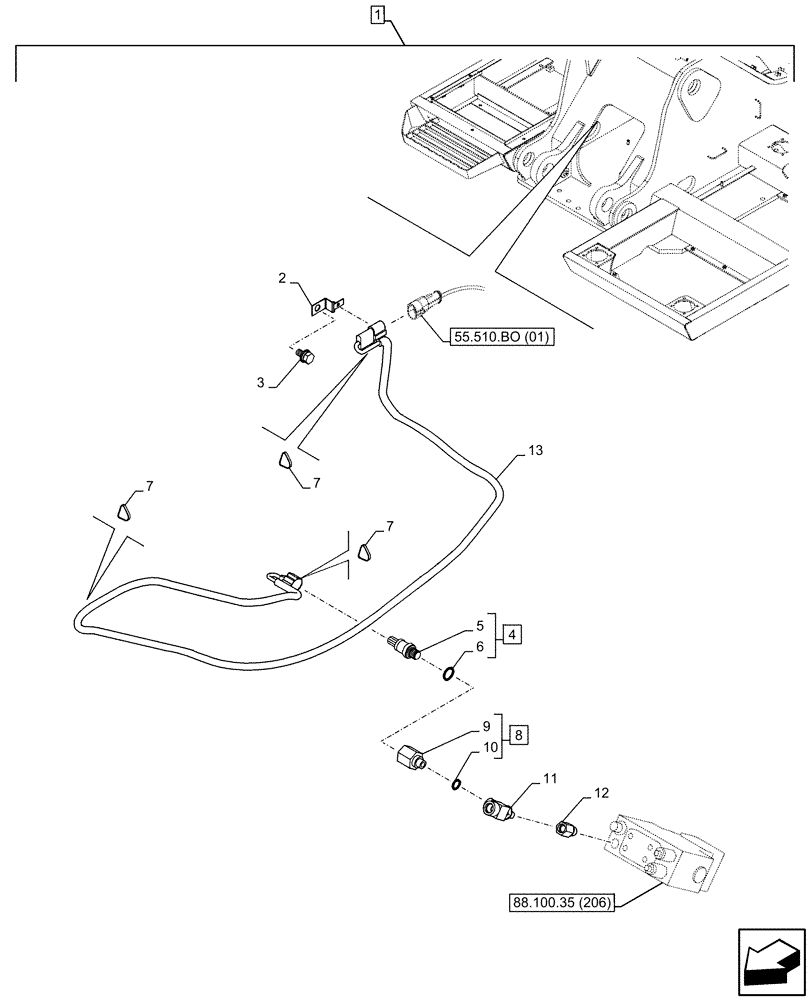

Запчасти Case CX250D LC LR (88.100.35[213]) - DIA KIT, SAFETY VALVE, BOOM, LIFT CYLINDER, CHECK VALVE, WIRE HARNESS, PRESSURE SWITCH (88) - ACCESSORIES

1

KG1BP608-00

CONSTRUCTION DIA

Hose Burst Check Valve, Incl 2 - 13

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHR13170

AIR DUCT

1шт.

3

167518A1

BOLT

1шт.

4

KHR10290

SENSOR

ASSY, Pressure 50 Mpa, Incl 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

Sensor, Incl in 5

1шт.

6

UCP0101

O-RING

1шт.

7

150496A1

MOUNTING CLIP

5шт.

8

KHJ18180

STUD

ASSY, Incl 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

Stud, Incl in 8

1шт.

10

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

11

KHJ12530

TEE

1шт.

12

KHJ13640

STUD

1шт.

13

KHR11650

WIRE HARNESS

Safety Valve, Overload Alarm

1шт.
