(55.510.060) - VAR - 461872 - OPTION, HARNESS, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX290D LC MH (55.510.060) - VAR - 461872 - OPTION, HARNESS, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS

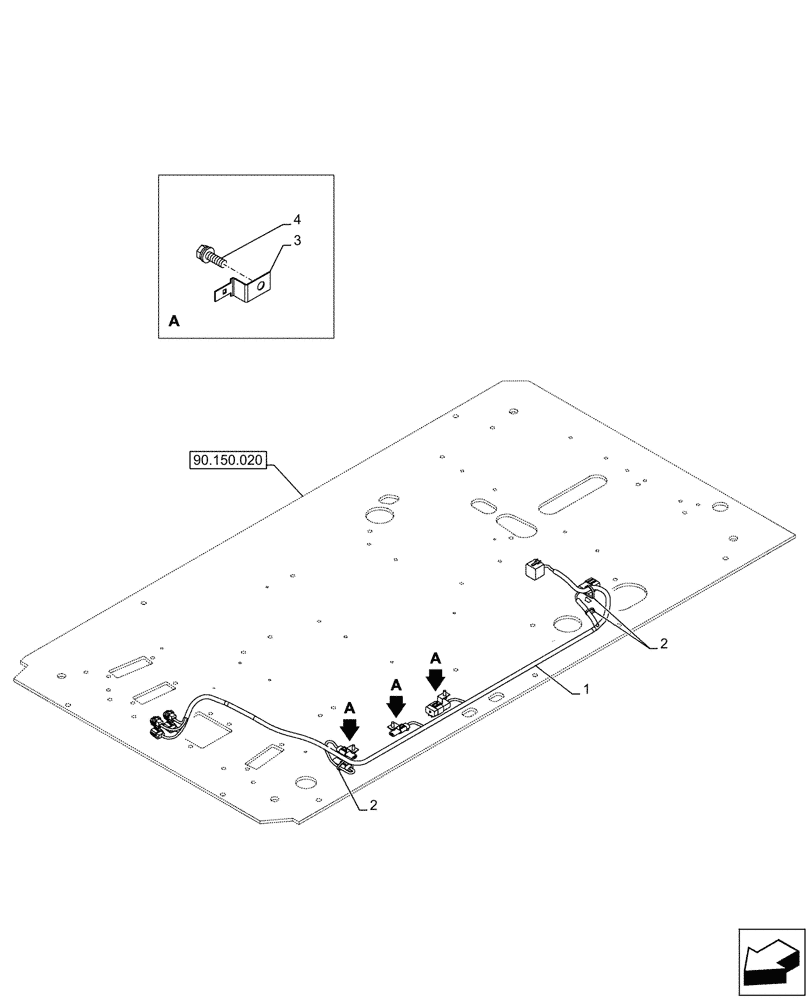

Схема запчастей Case CX290D LC MH - (55.510.060) - VAR - 461872 - OPTION, HARNESS, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS
90.150.020
2
1
4
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR47650

WIRE HARNESS

1шт.

2

150496A1

MOUNTING CLIP

250mm

3шт.

3

165405A1

CLIP

3шт.

4

159602A1

BOLT,Sems, Hex, M6 x 16mm

3шт.
