(35.353.AB) - TRAVEL MOTOR & REDUCTION GEAR, RELIEF VALVE

Запчасти Case CX300D LC (35.353.AB) - TRAVEL MOTOR & REDUCTION GEAR, RELIEF VALVE (35) - HYDRAULIC SYSTEMS

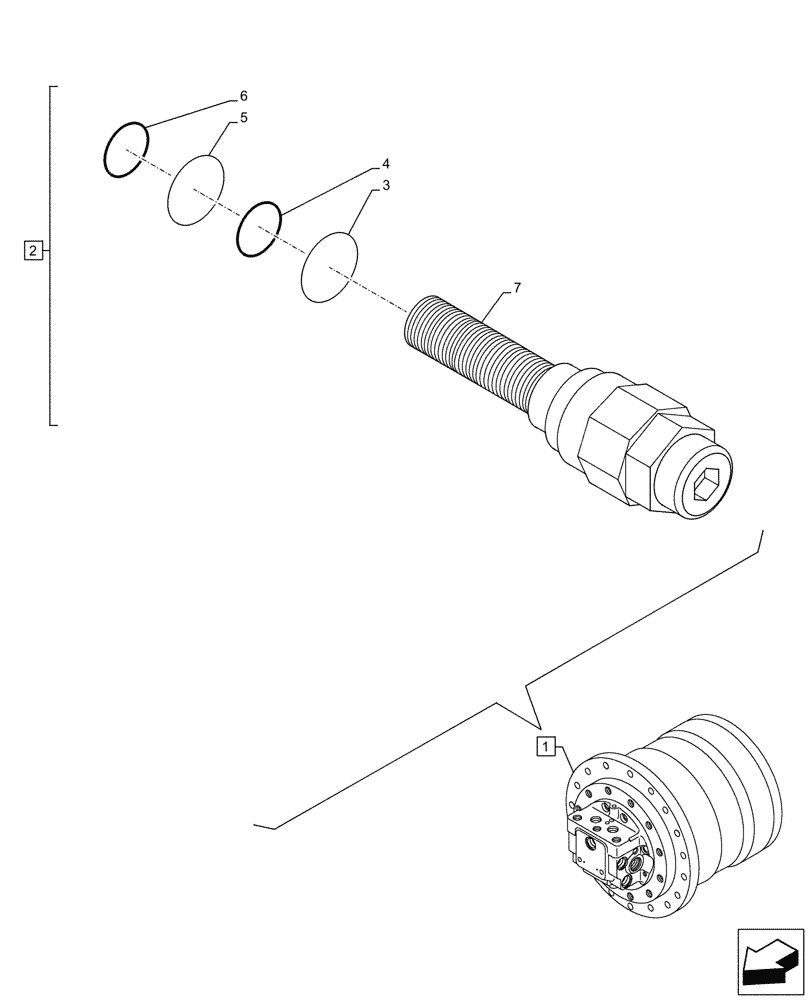

Схема запчастей Case CX300D LC - (35.353.AB) - TRAVEL MOTOR & REDUCTION GEAR, RELIEF VALVE (35) - HYDRAULIC SYSTEMS
3
2
1
5
7
4
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBA14840

HYDRAULIC MOTOR

ASSY, Incl 2 - 7

1шт.

See also figure 35.353.AD (01), 35.353.AD (02), 35.353.AD (03), 35.353.AG (01), 35.353.AG (02)

1шт.

2

LJ013270

VALVE PRESSURE RELIE

ASSY, Incl 3 - 7

2шт.

3

153943A1

BACK-UP RING

4шт.

4

154451A1

O-RING

2шт.

5

153987A1

BACK-UP RING

2шт.

6

154509A1

O-RING

4шт.

7

NSS

NOT SOLD SEPARAT

Relief Valve, Incl in 2

2шт.
