(55.404.CD[01]) - VAR - 488037 - REAR VIEW CAMERA, LIGHT

Запчасти Case CX300D LC (55.404.CD[01]) - VAR - 488037 - REAR VIEW CAMERA, LIGHT (55) - ELECTRICAL SYSTEMS

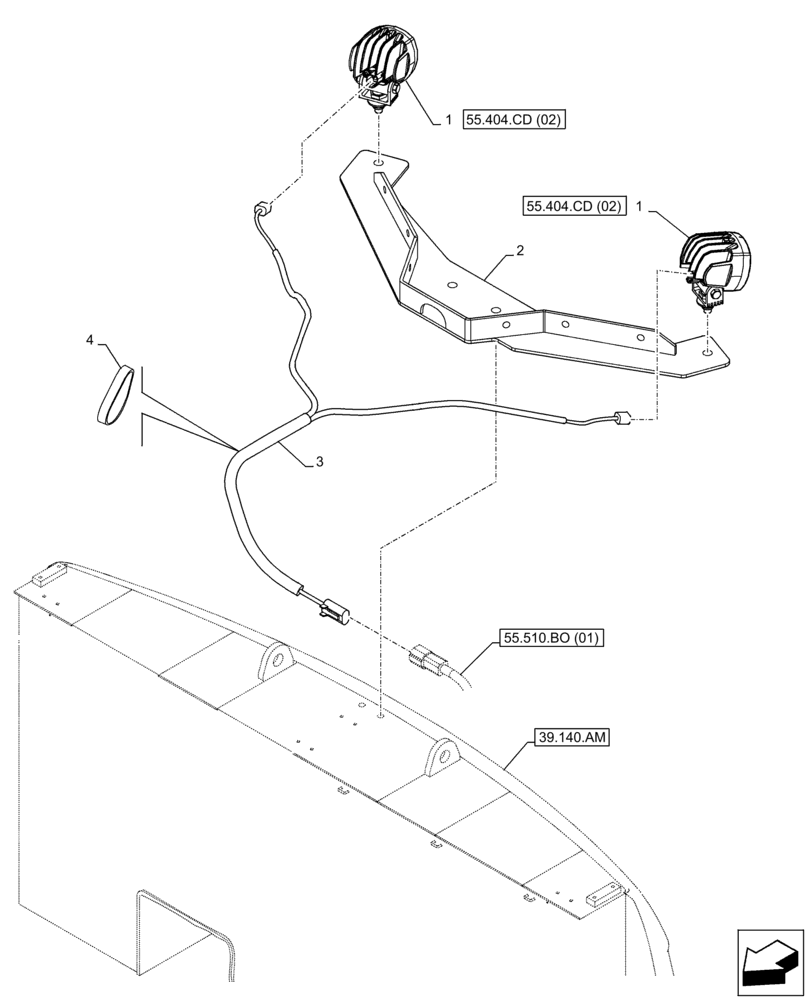

Схема запчастей Case CX300D LC - (55.404.CD[01]) - VAR - 488037 - REAR VIEW CAMERA, LIGHT (55) - ELECTRICAL SYSTEMS
55.404.cd (02)
39.140.am
1
3
2
55.510.bo (01)
55.404.cd (02)
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR37950

WORK LAMP

ASSY

2шт.

2

KHR41820

BRACKET

, Serial Range: -C0295

1шт.

2

KHR41821

BRACKET

, Start Serial: D0295

1шт.

3

KHR42950

WIRE HARNESS

2шт.

4

150496A1

MOUNTING CLIP

250mm

7шт.
