(55.425.AT[03]) - VAR - 461865 - HAMMER CIRCUIT, PRESSURE SENSOR, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX300D LC (55.425.AT[03]) - VAR - 461865 - HAMMER CIRCUIT, PRESSURE SENSOR, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS

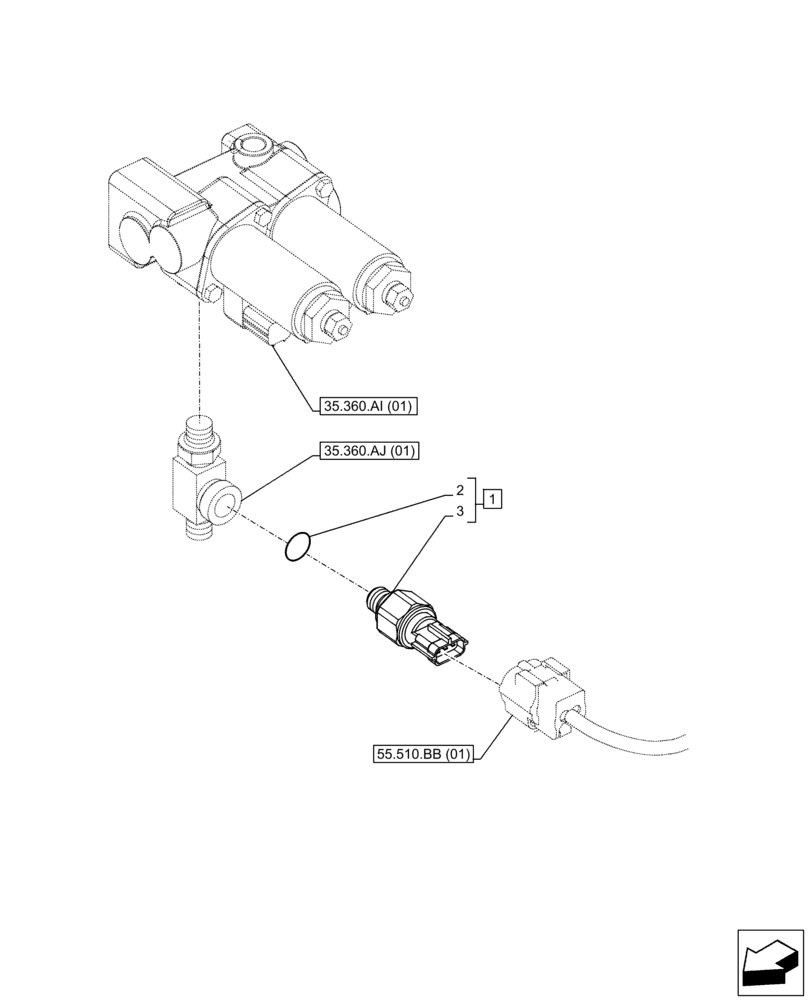

Схема запчастей Case CX300D LC - (55.425.AT[03]) - VAR - 461865 - HAMMER CIRCUIT, PRESSURE SENSOR, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS
55.510.bb (01)
3
35.360.aj (01)
35.360.ai (01)
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR26940

SENSOR

ASSY, Incl 2,3

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

3

NSS

NOT SOLD SEPARAT

Pressure Sensor, Incl in 1

1шт.
