(55.510.BO[01]) - MAIN, WIRE HARNESS - BSN NGS7N1135

Запчасти Case CX300D LC (55.510.BO[01]) - MAIN, WIRE HARNESS - BSN NGS7N1135 (55) - ELECTRICAL SYSTEMS

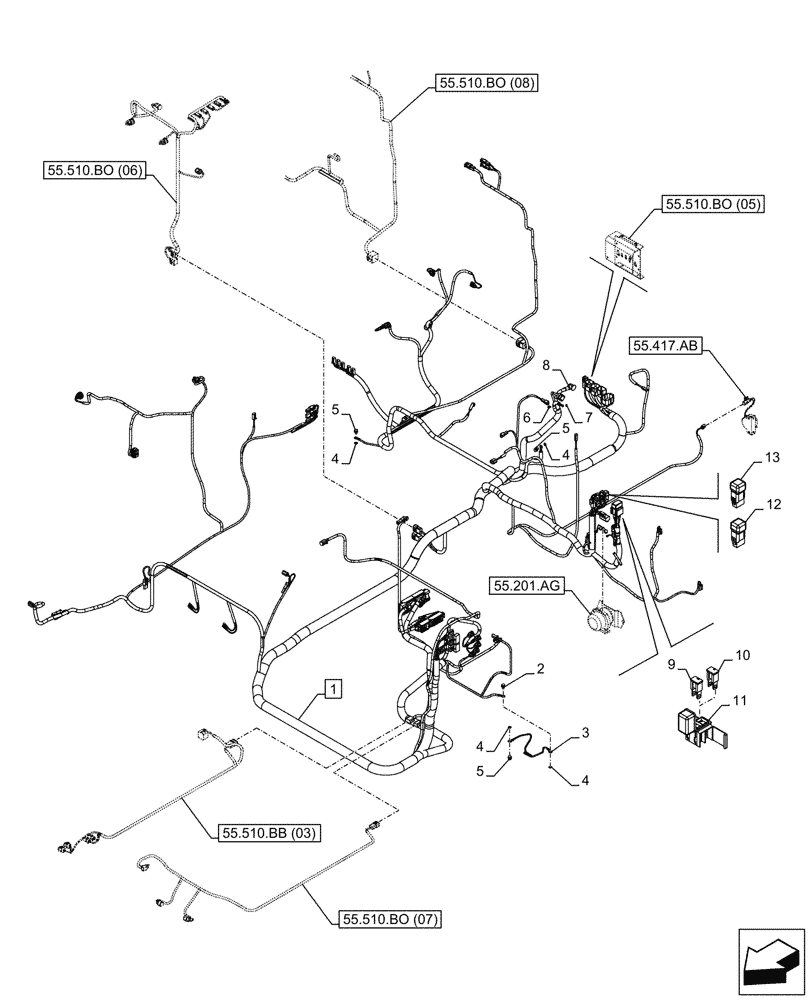

Схема запчастей Case CX300D LC - (55.510.BO[01]) - MAIN, WIRE HARNESS - BSN NGS7N1135 (55) - ELECTRICAL SYSTEMS
55.417.ab
12
5
4
7
11
10
3
1
5
13
5
6
4
2
4
4
8
9
55.510.bo (08)
55.510.bo (07)
55.510.bo (05)
55.510.bo (06)
55.201.ag
55.510.bb (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBR13670

WIRE HARNESS

Main Frame, ASSY, Incl 9 - 11

1шт.

2

167320A1

BOLT,Spcl, M8 x 20mm

1шт.

3

KHR28730

GROUND CABLE

1шт.

4

893-11008

LOCK WASHER,Ext Tooth, M8

4шт.

5

167518A1

BOLT

M8 x 16mm

3шт.

6

KHR1828

BOLT,Spcl

M5 x 12mm

1шт.

7

893-11005

LOCK WASHER,Ext Tooth, M5

1шт.

8

159182A1

DUST CAP

1шт.

9

KHR39850

FUSE

Large Current, 100A

1шт.

10

KHR39840

FUSE

B1, 60A

1шт.

11

KHR42470

FUSE HOLDER

1шт.

12

KHR3850

FUSE

High current, 50A

1шт.

13

KHR12950

FUSE

High current, 60A

2шт.
