(55.510.BO[09]) - MAIN, WIRE HARNESS - ASN NGS7N1136

Запчасти Case CX300D LC (55.510.BO[09]) - MAIN, WIRE HARNESS - ASN NGS7N1136 (55) - ELECTRICAL SYSTEMS

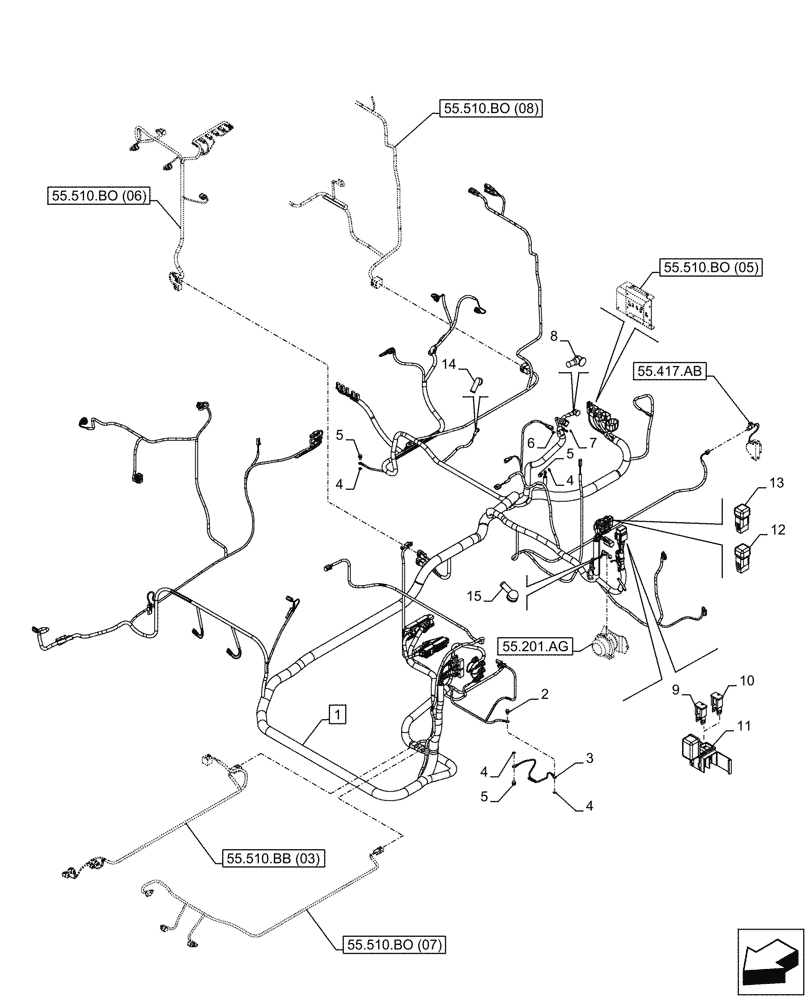

Схема запчастей Case CX300D LC - (55.510.BO[09]) - MAIN, WIRE HARNESS - ASN NGS7N1136 (55) - ELECTRICAL SYSTEMS
55.417.ab
15
9
4
3
5
4
6
5
2
7
4
13
14
4
5
12
1
8
11
10
55.510.bo (08)
55.510.bo (07)
55.510.bo (05)
55.510.bo (06)
55.201.ag
55.510.bb (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBR13670

WIRE HARNESS

Main Frame, ASSY, Incl 9 - 15, Serial Range: -C0315

1шт.

1

KBR13671

WIRE HARNESS

Main Frame, ASSY, Incl 9 - 15, Start Serial: D0315

1шт.

2

167320A1

BOLT,Spcl, M8 x 20mm

1шт.

3

KHR28730

GROUND CABLE

1шт.

4

893-11008

LOCK WASHER,Ext Tooth, M8

4шт.

5

167518A1

BOLT

M8 x 16mm

3шт.

6

KHR1828

BOLT,Spcl

M5 x 12mm

1шт.

7

893-11005

LOCK WASHER,Ext Tooth, M5

1шт.

8

159182A1

DUST CAP

, Start Serial: D0315

1шт.

9

KHR39850

FUSE

Large Current, 100A

1шт.

10

KHR39840

FUSE

B1, 60A

1шт.

11

KHR42470

FUSE HOLDER

1шт.

12

KHR3850

FUSE

High current, 50A, Start Serial: D0315

1шт.

13

KHR12950

FUSE

High current, 60A, Start Serial: D0315

2шт.

14

159173A1

CAP

, Start Serial: D0315

1шт.

15

159171A1

CAP

, Start Serial: D0315

2шт.
