(55.512.AA[01]) - CAB, RADIO, SPEAKER

Запчасти Case CX300D LC (55.512.AA[01]) - CAB, RADIO, SPEAKER (55) - ELECTRICAL SYSTEMS

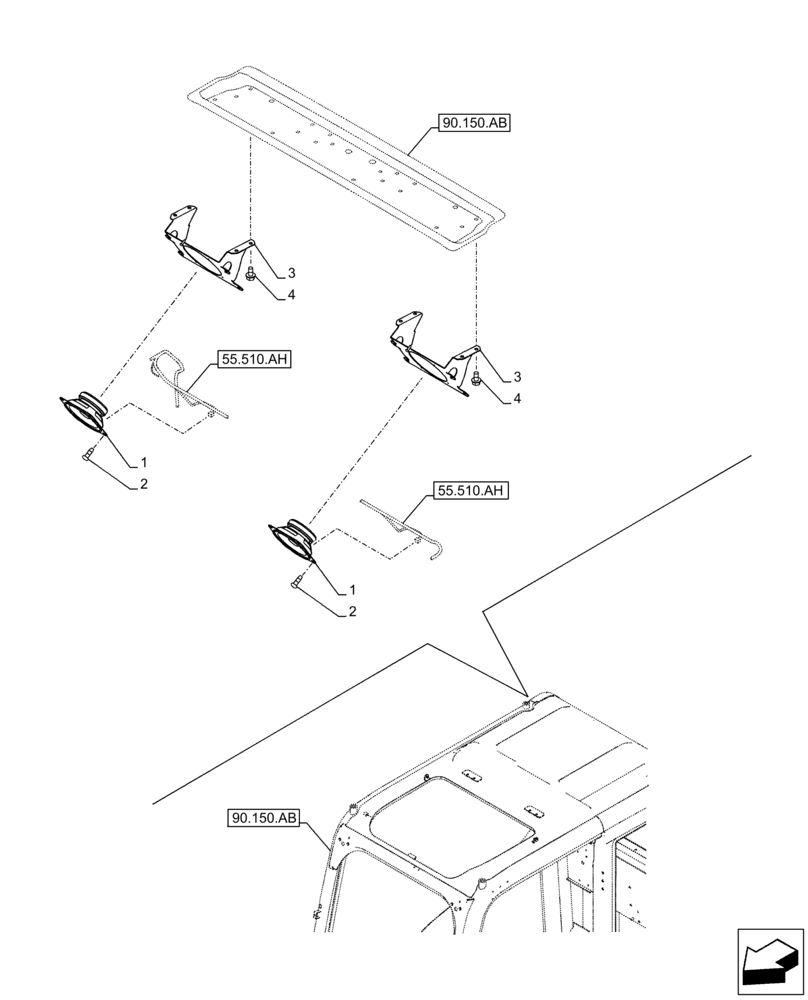

Схема запчастей Case CX300D LC - (55.512.AA[01]) - CAB, RADIO, SPEAKER (55) - ELECTRICAL SYSTEMS
90.150.ab
3
2
55.510.ah
55.510.ah
2
90.150.ab
1
4
1
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR3366

SPEAKER

2шт.

2

KHN2716

SCREW,Spcl

M4 x 12mm

8шт.

3

KHN25650

BRACKET, SUPPORTING

2шт.

4

KHN18870

BOLT

Hex, M6 x 1 x 12mm

8шт.
