(84.100.301) - HYDRAULIC QUICK COUPLER MULTI-FIT S KIT

Запчасти Case CX300D LC (84.100.301) - HYDRAULIC QUICK COUPLER MULTI-FIT S KIT (84) - BOOMS, DIPPERS & BUCKETS

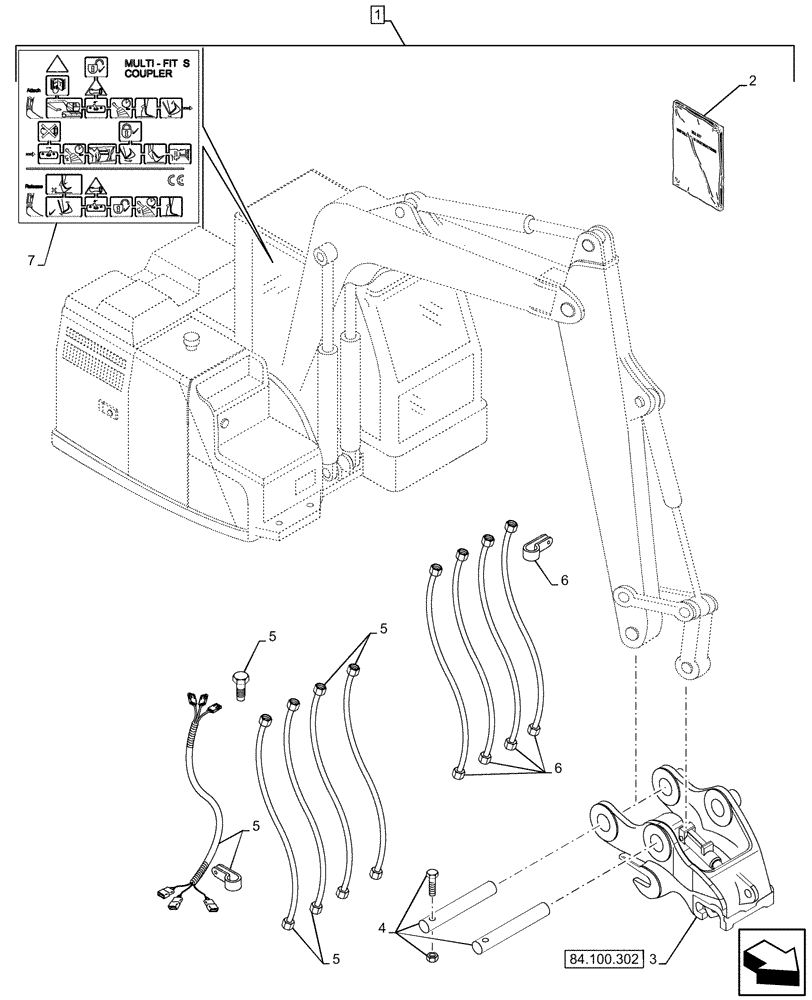

Схема запчастей Case CX300D LC - (84.100.301) - HYDRAULIC QUICK COUPLER MULTI-FIT S KIT (84) - BOOMS, DIPPERS & BUCKETS
6
1
7
5
5
5
4
3
5
2
6
84.100.302
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47848465

CONSTRUCTION DIA

Kit, Quick Male Couplig, ASSY, Incl 2 - 7

1шт.

2

47848479

INSTRUCTION

Guide Installation

1шт.

3

47603353

QUICK MALE COUPLING

ASSY

1шт.

4

ZKDPCX2407

KIT

Bucket Pin

1шт.

5

47848473

KIT

Hose

1шт.

6

47848474

KIT

Hose

1шт.

7

47508618

DECAL

Cab

1шт.

Выбрано товаров: 7
