(84.912.AD[04]) - VAR - 481064 - ARM CYLINDER, BUSHING, SAFETY VALVE

Запчасти Case CX300D LC (84.912.AD[04]) - VAR - 481064 - ARM CYLINDER, BUSHING, SAFETY VALVE (84) - BOOMS, DIPPERS & BUCKETS

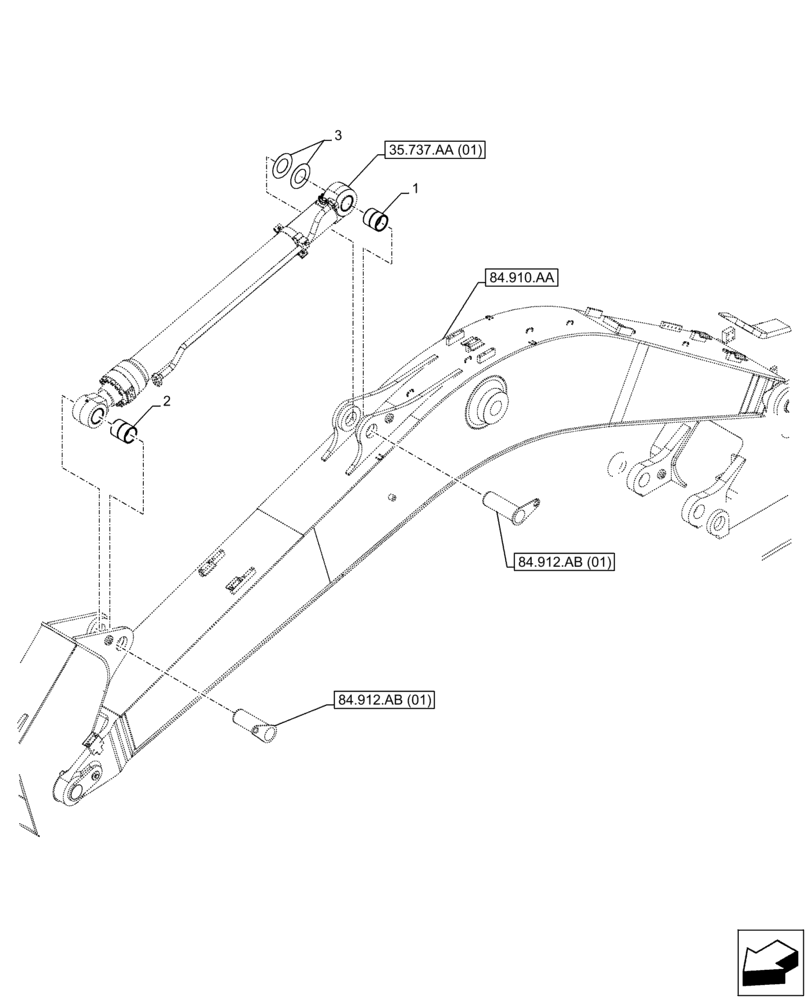

Схема запчастей Case CX300D LC - (84.912.AD[04]) - VAR - 481064 - ARM CYLINDER, BUSHING, SAFETY VALVE (84) - BOOMS, DIPPERS & BUCKETS
3
84.912.ab (01)
1
35.737.aa (01)
84.912.ab (01)
2
84.910.aa
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBV1628

SELF LUB RING

1шт.

Parts are included in Arm Cylinder Assembly PN KBV32291

1шт.

2

KBV10480

SELF LUB RING

1шт.

Parts are included in Arm Cylinder Assembly PN KBV32291

1шт.

3

KBV1629

SHIM

2шт.
