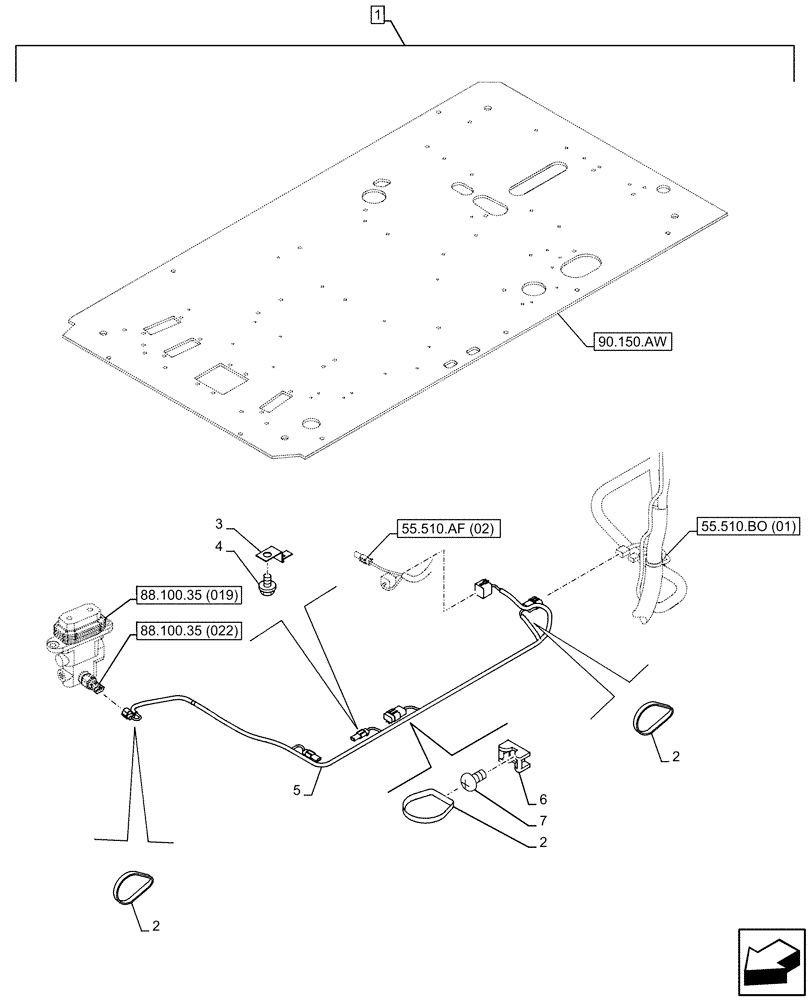

Запчасти Case CX300D LC (88.100.35[023]) - DIA KIT, HAMMER CIRCUIT, W/ HYDRAULIC CONTROL, FOOT CONTROL VALVE, WIRE HARNESS (88) - ACCESSORIES

1

KG1BP510-00

CONSTRUCTION DIA

Breaker Circuit Pedal Kit, Incl 2 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

150496A1

MOUNTING CLIP

L=250mm

6шт.

3

165405A1

CLIP

3шт.

4

159602A1

BOLT,Sems, Hex, M6 x 16mm

3шт.

5

KHR39480

WIRE HARNESS

1шт.

6

150860A1

COLLAR

4шт.

7

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

4шт.
