(88.100.35[026]) - DIA KIT, HAMMER CIRCUIT, W/ HYDRAULIC CONTROL, BOOM, LINE, PLUG

Запчасти Case CX300D LC (88.100.35[026]) - DIA KIT, HAMMER CIRCUIT, W/ HYDRAULIC CONTROL, BOOM, LINE, PLUG (88) - ACCESSORIES

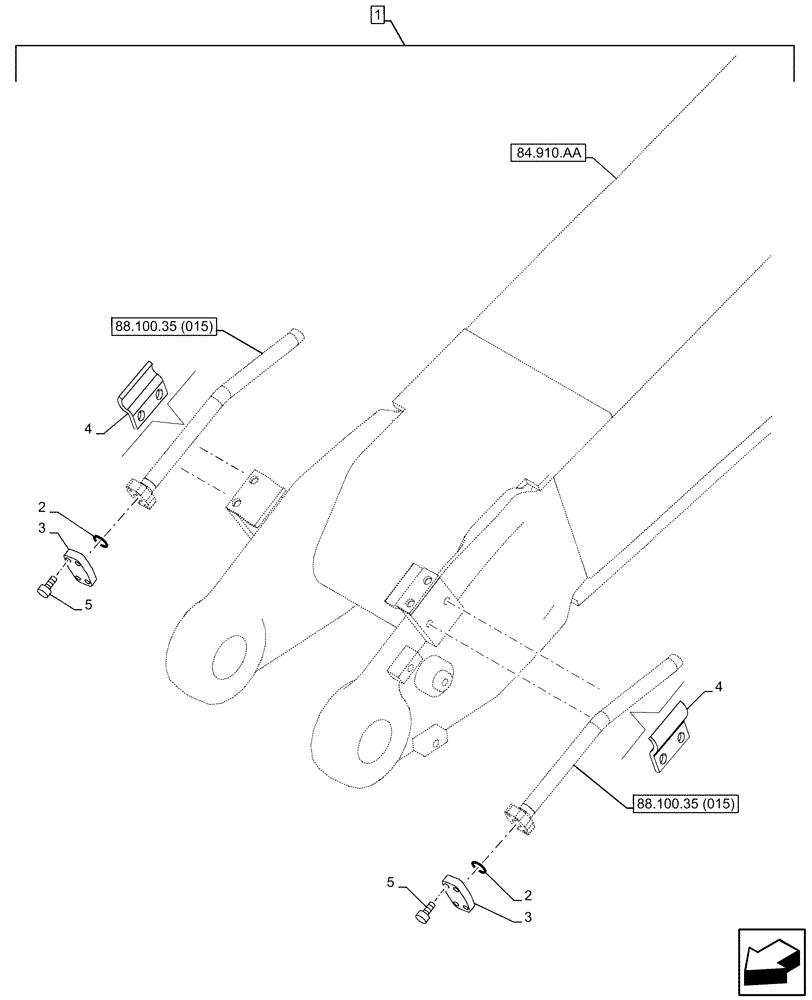

Схема запчастей Case CX300D LC - (88.100.35[026]) - DIA KIT, HAMMER CIRCUIT, W/ HYDRAULIC CONTROL, BOOM, LINE, PLUG (88) - ACCESSORIES
1
4
2
3
88.100.35 (015)
4
84.910.aa
5
3
2
88.100.35 (015)
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP510-00

CONSTRUCTION DIA

Breaker Circuit Pedal Kit, Incl 2 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

164450A1

O-RING

2шт.

3

KUP0009

FLANGE

2шт.

4

KHV11070

COLLAR CLAMP

2шт.

5

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

8шт.

Выбрано товаров: 6
