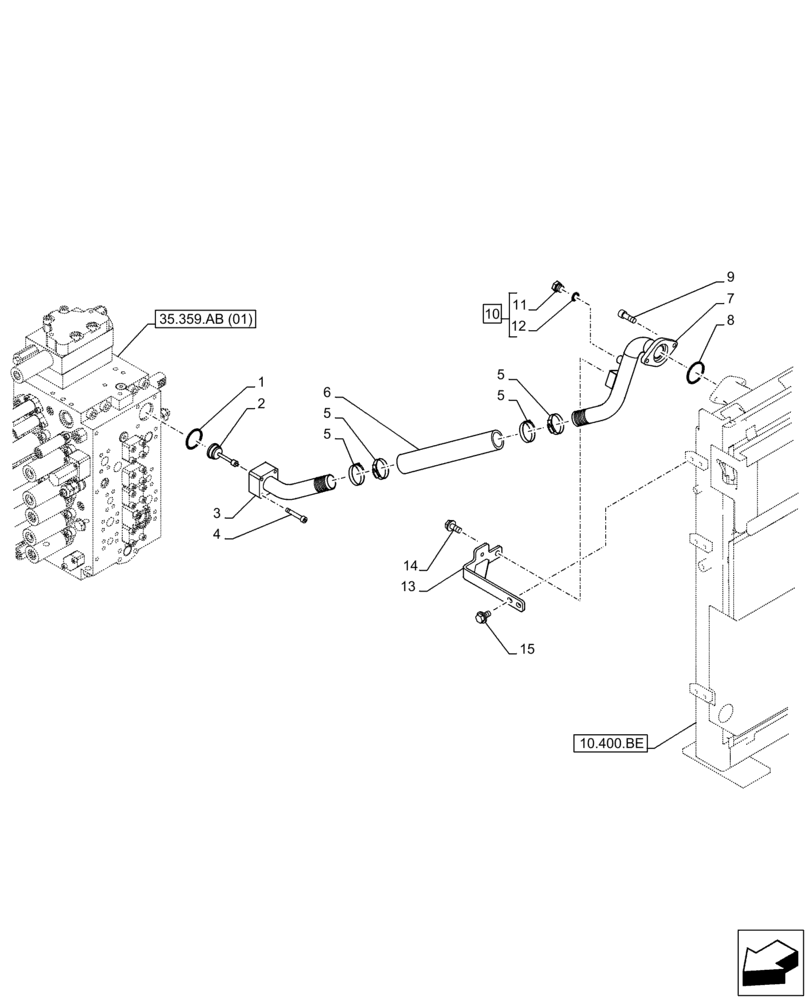

Запчасти Case CX350D LC (35.300.BC[02]) - OIL COOLER LINE (35) - HYDRAULIC SYSTEMS

1

154641A1

O-RING

1шт.

2

163417A1

VALVE

1шт.

3

KSJ18580

PIPE

1шт.

4

862-10060

HEX SOC SCREW,M10 x 60mm, Cl 12.9

4шт.

5

KHJ26110

HOSE CLAMP

4шт.

6

167519A1

HOSE

5mm ID x 628mm

1шт.

7

KSJ21320

PIPE

1шт.

8

154680A1

O-RING

1шт.

9

862-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

2шт.

10

153105A1

PLUG

ASSY, Incl 11 - 12

1шт.

11

NSS

NOT SOLD SEPARAT

Plug, Incl in 10

1шт.

12

154475A1

O-RING

1шт.

13

KSJ21330

BRACKET

1шт.

14

166352A1

BOLT

M12 x 30mm

1шт.

15

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.
