(35.353.AB) - TRAVEL MOTOR & REDUCTION GEAR, RELIEF VALVE

Запчасти Case CX350D LC (35.353.AB) - TRAVEL MOTOR & REDUCTION GEAR, RELIEF VALVE (35) - HYDRAULIC SYSTEMS

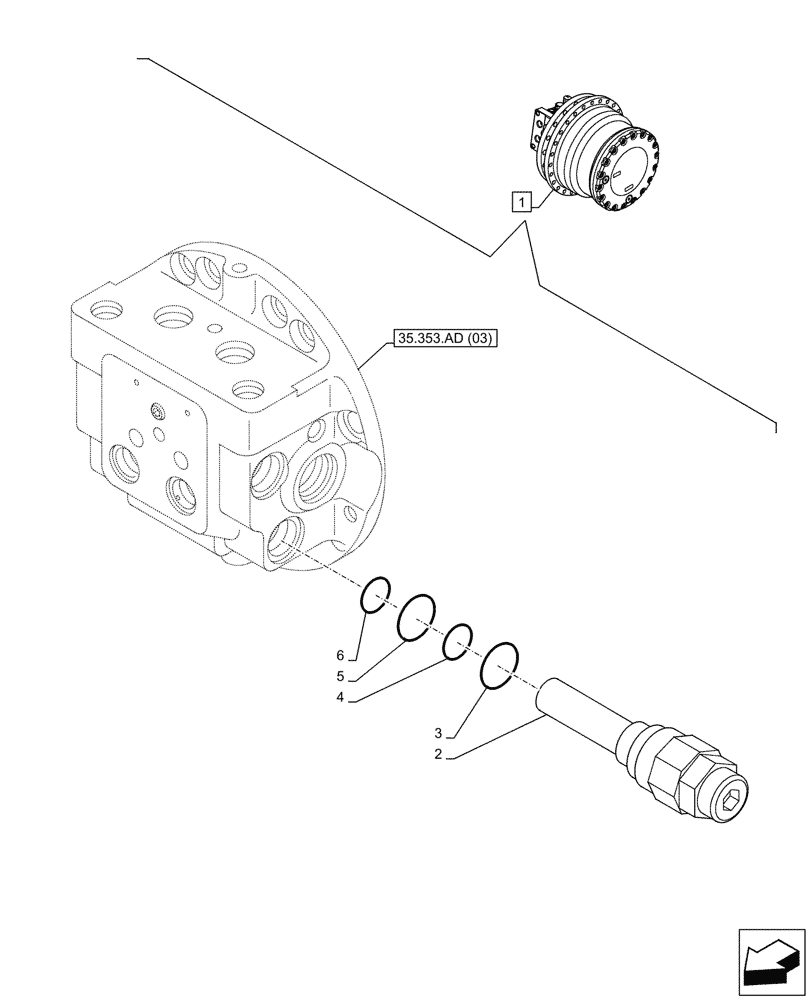

Схема запчастей Case CX350D LC - (35.353.AB) - TRAVEL MOTOR & REDUCTION GEAR, RELIEF VALVE (35) - HYDRAULIC SYSTEMS
35.353.ad (03)
2
3
6
4
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KSA14090

HYDRAULIC MOTOR

ASSY, Incl 2 - 6

1шт.

See also Figure 35.353.AD (01), 35.353.AD (02), 35.353.AD (03), 35.353.AG (01), 35.353.AG (02)

1шт.

2

LJ013270

VALVE PRESSURE RELIE

1шт.

3

153943A1

BACK-UP RING

4шт.

4

154451A1

O-RING

2шт.

5

153987A1

BACK-UP RING

2шт.

6

154509A1

O-RING

4шт.

Выбрано товаров: 7
