(35.353.AD[01]) - TRAVEL MOTOR & REDUCTION GEAR, HOUSING

Запчасти Case CX350D LC (35.353.AD[01]) - TRAVEL MOTOR & REDUCTION GEAR, HOUSING (35) - HYDRAULIC SYSTEMS

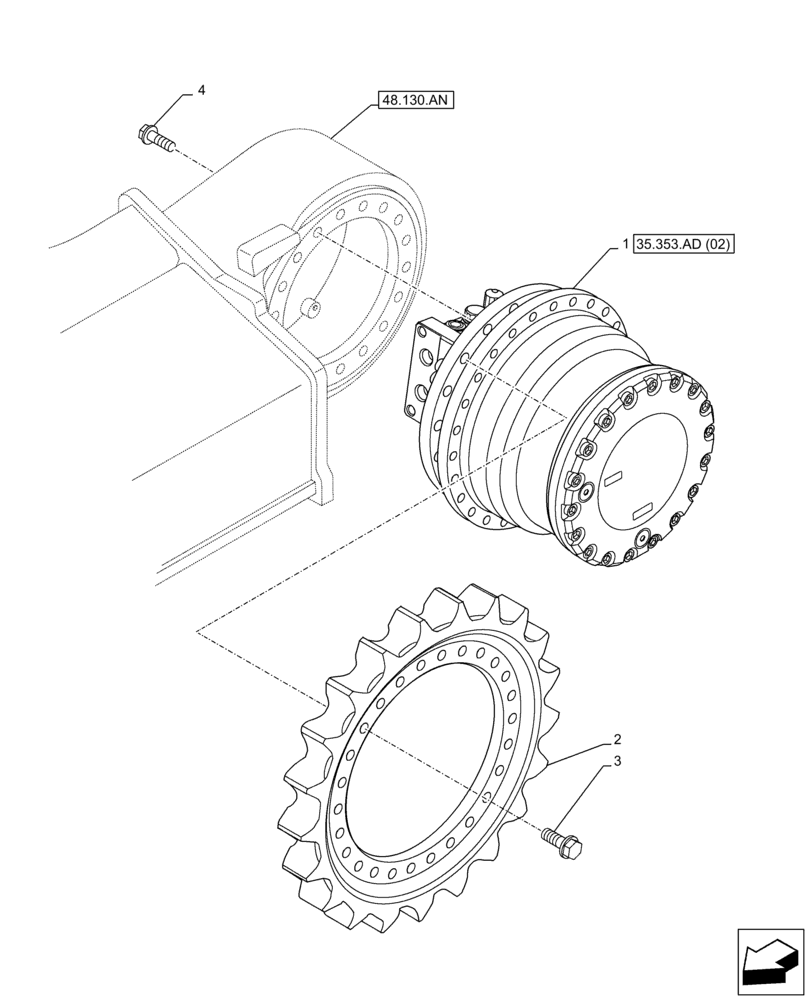

Схема запчастей Case CX350D LC - (35.353.AD[01]) - TRAVEL MOTOR & REDUCTION GEAR, HOUSING (35) - HYDRAULIC SYSTEMS
4
1
3
2
35.353.ad (02)
48.130.an
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KSA14090

HYDRAULIC MOTOR

ASSY, Motor Hydraulic Traction

2шт.

See also Figure 35.353.AD (02), 35.353.AD (03), 35.353.AG (01), 35.353.AG (02), 35.353.AB

1шт.

2

KSA1061

SPROCKET

2шт.

3

166353A1

BOLT,Flng, M20 x 65mm, Cl 10.9

M20 x 65mm

52шт.

4

105R024Y070R

BOLT

M24 x 70mm

36шт.
