(35.353.AE) - TRAVEL MOTOR & REDUCTION GEAR, LINE

Запчасти Case CX350D LC (35.353.AE) - TRAVEL MOTOR & REDUCTION GEAR, LINE (35) - HYDRAULIC SYSTEMS

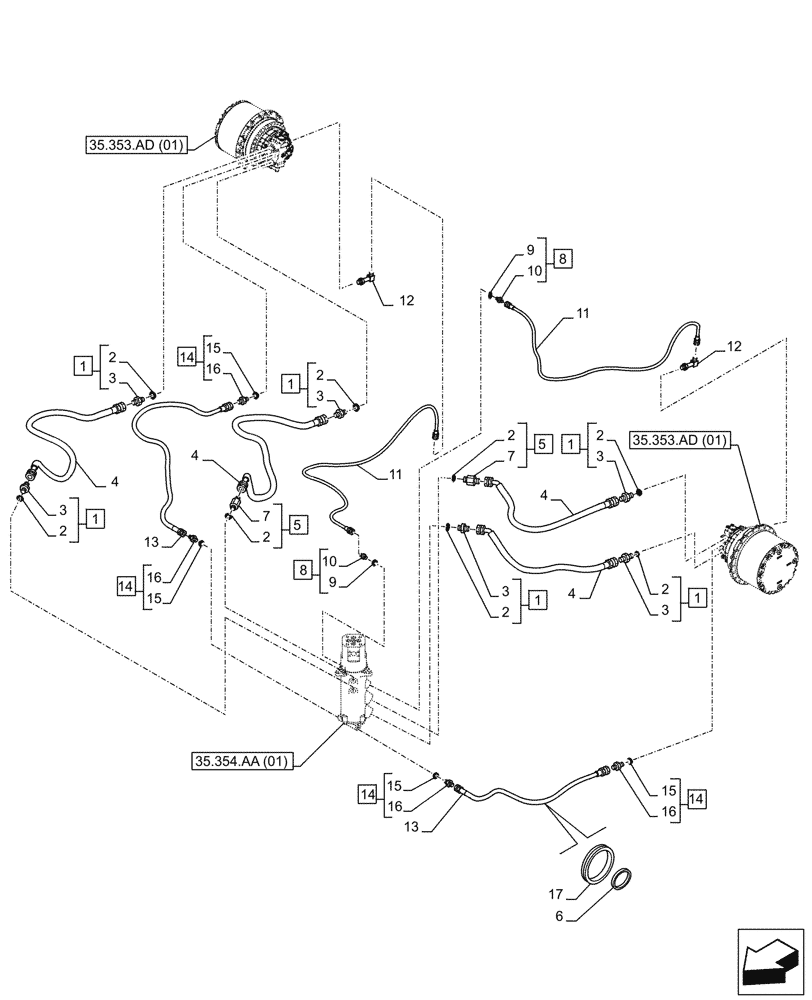

Схема запчастей Case CX350D LC - (35.353.AE) - TRAVEL MOTOR & REDUCTION GEAR, LINE (35) - HYDRAULIC SYSTEMS
35.353.ad (01)
15
2
2
14
16
17
15
5
1
4
3
11
2
15
2
10
6
7
3
1
1
3
3
7
16
16
14
3
8
3
9
2
4
13
5
4
16
15
1
2
1
9
10
4
13
14
8
12
1
2
1
1
14
2
12
35.354.aa (01)
35.353.ad (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

ASSY, Incl 2, 3

6шт.

2

154523A1

O-RING

8шт.

3

NSS

NOT SOLD SEPARAT

Fitting, Incl in 1

6шт.

4

KSA11830

HYDRAULIC HOSE,2350.00 mm

4шт.

5

KHJ1156

STUD

ASSY, Incl 2, 7

2шт.

6

150071A1

MOUNTING CLIP

4шт.

7

NSS

NOT SOLD SEPARAT

Stud, Incl in 5

2шт.

8

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 9, 10

2шт.

9

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

10

NSS

NOT SOLD SEPARAT

Fitting, Incl in 8

2шт.

11

157851A1

HOSE

2шт.

12

KHJ1178

ELBOW

2шт.

13

KRJ6044

HYDRAULIC HOSE,12.70 mm ID x 2500.00 mm

2шт.

14

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ASSY, Incl 15, 16

4шт.

15

154487A1

O-RING

4шт.

16

NSS

NOT SOLD SEPARAT

Fitting, Incl in 14

4шт.

17

158813A1

GROMMET

2шт.
