(55.014.AC) - AIR CLEANER, VACUUM GAUGE

Запчасти Case CX350D LC (55.014.AC) - AIR CLEANER, VACUUM GAUGE (55) - ELECTRICAL SYSTEMS

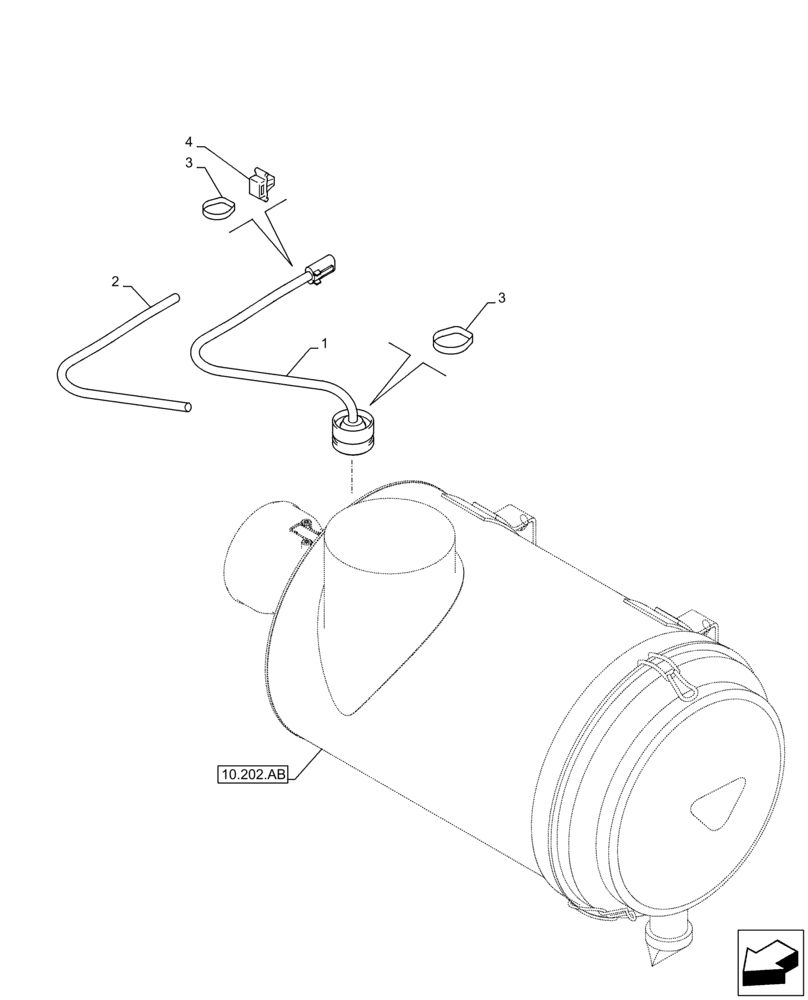

Схема запчастей Case CX350D LC - (55.014.AC) - AIR CLEANER, VACUUM GAUGE (55) - ELECTRICAL SYSTEMS
3
4
2
10.202.ab
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHH17440

SENSOR

, Serial Range: -C0340

1шт.

Parts is included in Air Cleaner Assembly PN KSH14440

1шт.

1

KHH17441

SENSOR

, Start Serial: D0340

1шт.

Parts is included in Air Cleaner Assembly PN KSH14441

1шт.

2

KHR42760

TUBE

5mm ID x 350mm

1шт.

3

150496A1

MOUNTING CLIP

250mm

3шт.

4

KHR10220

MOUNTING CLIP

1шт.

Выбрано товаров: 7
