(55.425.AT[03]) - VAR - 461871 - PRESSURE SENSOR, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX350D LC (55.425.AT[03]) - VAR - 461871 - PRESSURE SENSOR, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS

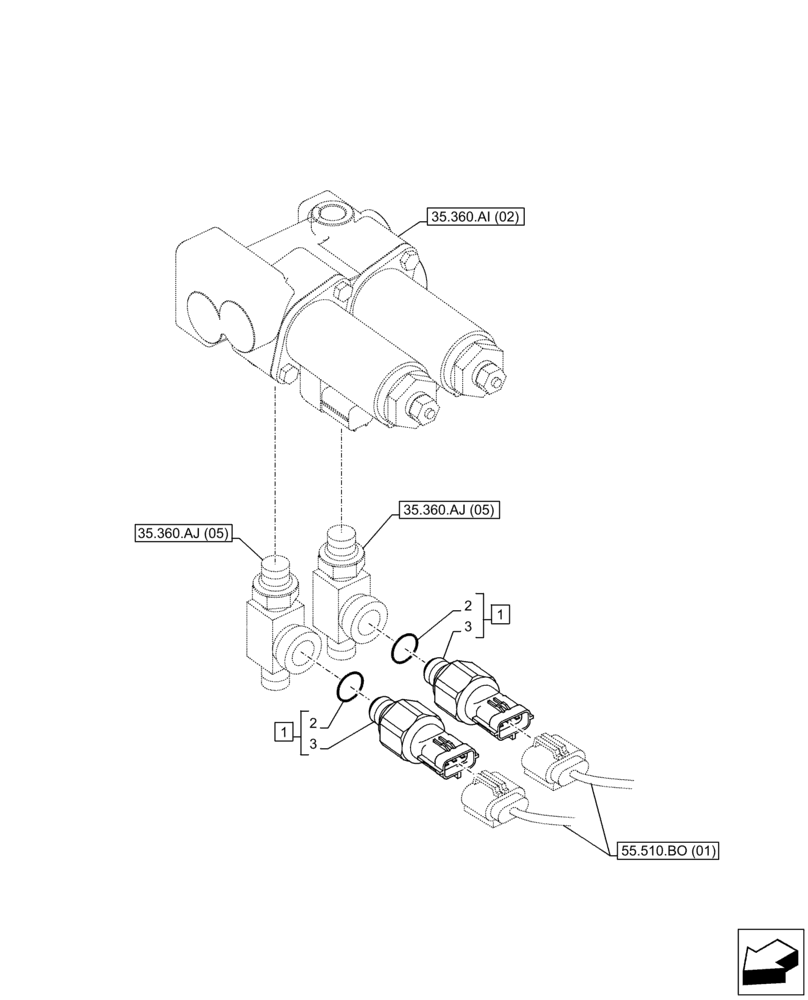

Схема запчастей Case CX350D LC - (55.425.AT[03]) - VAR - 461871 - PRESSURE SENSOR, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS
35.360.ai (02)
2
35.360.aj (05)
35.360.aj (05)
1
3
55.510.bo (01)
1
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR26940

SENSOR

ASSY, Incl 2 - 3

2шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

3

NSS

NOT SOLD SEPARAT

Sensor 5 Mpa, Incl in 1

2шт.

Выбрано товаров: 3
