(55.530.AB[02]) - VAR - 461560 - SIDE CAMERA, SUPPORT, BRACKET

Запчасти Case CX350D LC (55.530.AB[02]) - VAR - 461560 - SIDE CAMERA, SUPPORT, BRACKET (55) - ELECTRICAL SYSTEMS

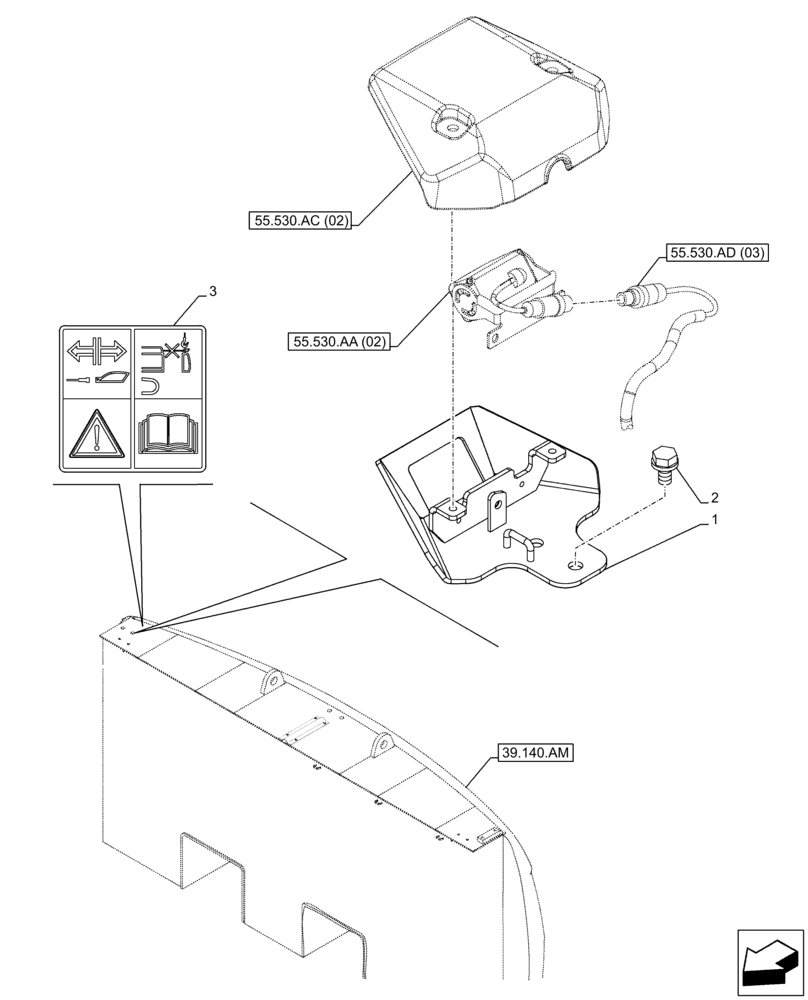

Схема запчастей Case CX350D LC - (55.530.AB[02]) - VAR - 461560 - SIDE CAMERA, SUPPORT, BRACKET (55) - ELECTRICAL SYSTEMS
55.530.aa (02)
39.140.am
3
1
2
55.530.ad (03)
55.530.ac (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR28630B1

BRACKET, SUPPORTING

, Serial Range: -C00417

1шт.

1

KHR40230B1

BRACKET

, Start Serial: D0417

1шт.

2

166350A1

BOLT

, Serial Range: -C00417

2шт.

2

166052A1

BOLT

M10 x 20mm, Start Serial: D0417

2шт.

3

KHP18460

DECAL

Camera Wiring Precautions

1шт.

Выбрано товаров: 5
