(55.530.AC[02]) - VAR - 461560 - SIDE CAMERA, COVER

Запчасти Case CX350D LC (55.530.AC[02]) - VAR - 461560 - SIDE CAMERA, COVER (55) - ELECTRICAL SYSTEMS

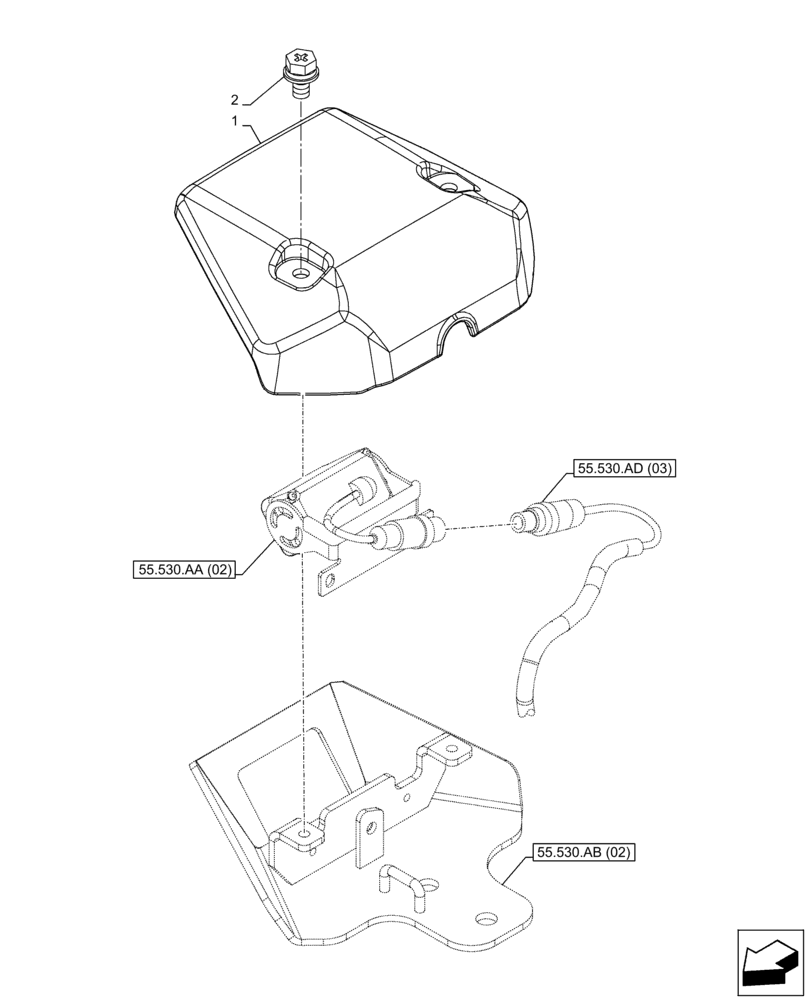

Схема запчастей Case CX350D LC - (55.530.AC[02]) - VAR - 461560 - SIDE CAMERA, COVER (55) - ELECTRICAL SYSTEMS
55.530.ab (02)
1
55.530.aa (02)
2
55.530.ad (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR39570

COVER

1шт.

2

KHN2308

SCREW

M8 x 16mm

2шт.

Выбрано товаров: 2
