(88.100.35[011]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM (L=2.65M)

Запчасти Case CX350D LC (88.100.35[011]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM (L=2.65M) (88) - ACCESSORIES

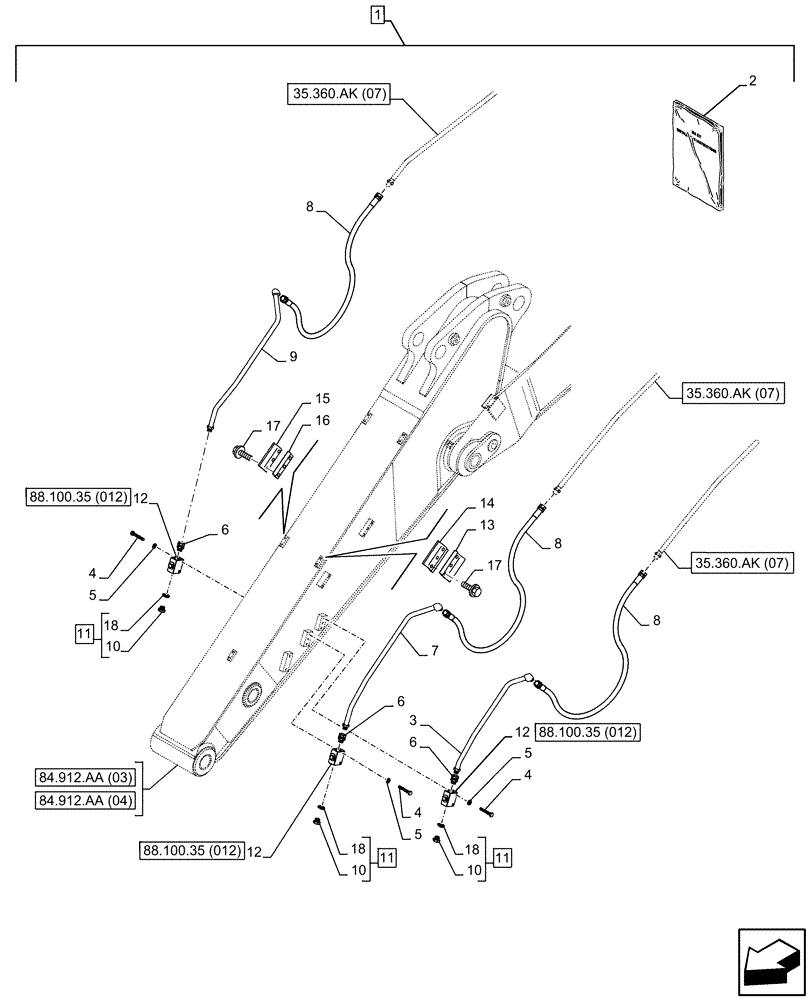

Схема запчастей Case CX350D LC - (88.100.35[011]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM (L=2.65M) (88) - ACCESSORIES
88.100.35 (012)
12
84.912.aa (04)
5
88.100.35 (012)
35.360.ak (07)
8
2
18
5
17
8
16
84.912.aa (03)
15
13
18
4
4
7
11
4
35.360.ak (07)
88.100.35 (012)
35.360.ak (07)
17
10
18
10
5
14
11
6
3
9
8
12
6
1
11
6
10
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1SP114-00

CONSTRUCTION DIA

Second Option Line, Incl 2 - 17

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47757375

INSTRUCTION

1шт.

2

47757384

INSTRUCTION

1шт.

3

KSV29380

PIPE

1шт.

4

827-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 10.9

6шт.

5

150811A1

WASHER

6шт.

6

167248A1

FITTING

3шт.

7

KSV29360

PIPE

1шт.

8

KSV29850

HYDRAULIC HOSE

3шт.

9

KSV29370

PIPE

1шт.

10

NSS

NOT SOLD SEPARAT

Plug, Incl in 11

3шт.

11

152924A1

PLUG

ASSY, Incl 10, 18

3шт.

12

KHV10710

VALVE

3шт.

13

KHV10450

COLLAR CLAMP

1шт.

14

KHV11410

PIPE CLAMP

1шт.

15

KHV10460

COLLAR CLAMP

1шт.

16

KHV11420

PIPE CLAMP

1шт.

17

166352A1

BOLT

6шт.

18

154503A1

O-RING

3шт.
