(88.100.35[013]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM (L=3.25M)

Запчасти Case CX350D LC (88.100.35[013]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM (L=3.25M) (88) - ACCESSORIES

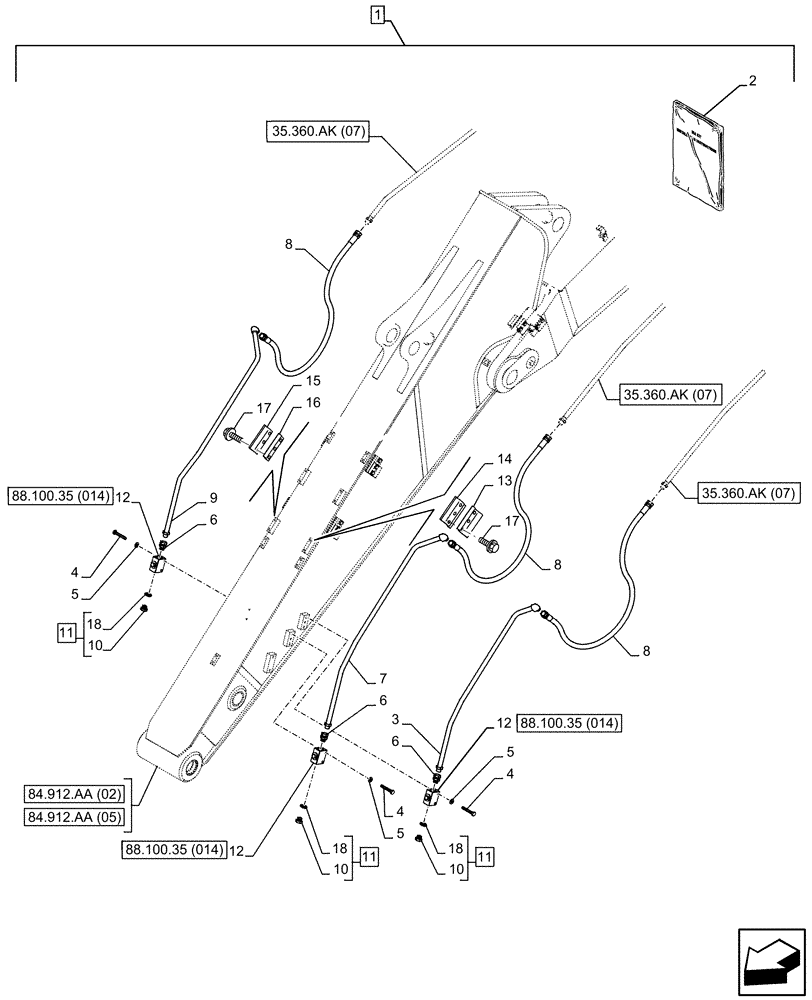

Схема запчастей Case CX350D LC - (88.100.35[013]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM (L=3.25M) (88) - ACCESSORIES
35.360.ak (07)
6
8
84.912.aa (05)
15
18
12
84.912.aa (02)
8
16
4
11
7
35.360.ak (07)
17
8
12
6
18
4
12
2
4
10
9
88.100.35 (014)
88.100.35 (014)
11
18
88.100.35 (014)
14
10
35.360.ak (07)
5
3
13
17
5
11
1
5
6
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1SP112-00

CONSTRUCTION DIA

Second Option Line, Incl 2 - 18

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47757373

INSTRUCTION

1шт.

2

47757382

INSTRUCTION

1шт.

3

KSV24640

PIPE

1шт.

4

827-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 10.9

6шт.

5

150811A1

WASHER

6шт.

6

167248A1

FITTING

3шт.

7

KSV24580

PIPE

1шт.

8

KSV25530

HYDRAULIC HOSE

3шт.

9

KSV24590

PIPE

1шт.

10

NSS

NOT SOLD SEPARAT

Plug, Incl in 11

3шт.

11

152924A1

PLUG

ASSY, Incl 10, 18

3шт.

12

KHV10710

VALVE

3шт.

13

KHV10450

COLLAR CLAMP

2шт.

14

KHV11410

PIPE CLAMP

2шт.

15

KHV10460

COLLAR CLAMP

2шт.

16

KHV11420

PIPE CLAMP

2шт.

17

166352A1

BOLT

12шт.

18

154503A1

O-RING

3шт.
