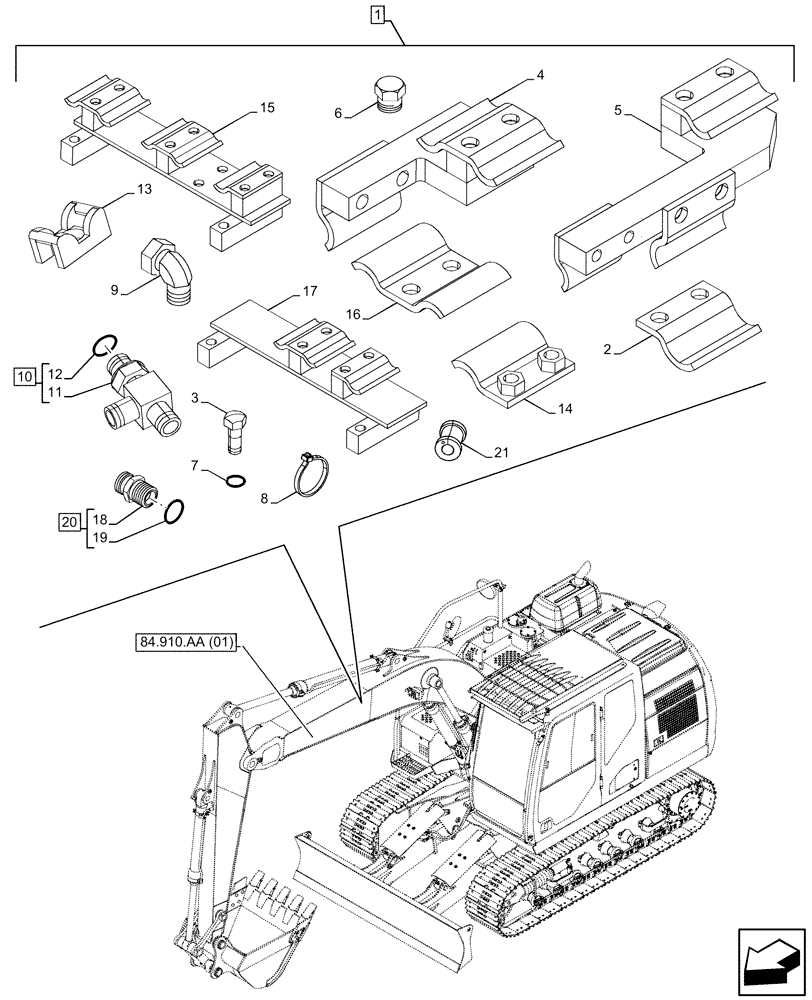

Запчасти Case CX350D LC (88.100.35[103]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, CLAMP, PLUG, ADAPTER, TEE (88) - ACCESSORIES

1

KG1SP087-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 21

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHV10460

COLLAR CLAMP

6шт.

3

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

16шт.

3

166352A1

BOLT

19шт.

3

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

M6 x 8mm

4шт.

3

KHV11670

BOLT

4шт.

4

KSV31280

BAR

2шт.

4

KSV31290

BAR

2шт.

4

KSV31300

BAR

1шт.

5

KSV31310

BAR

1шт.

6

153683A1

PLUG

3шт.

7

154697A1

O-RING

1шт.

8

150496A1

MOUNTING CLIP

250mm

2шт.

9

BHA1110

GASKET

1шт.

10

159497A1

TEE

ASSY, Incl 11, 12

2шт.

11

NSS

NOT SOLD SEPARAT

Adapter, Incl in 10

2шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

13

150860A1

COLLAR

25mm x 14.5mm x 12mm, 6.3mm D

4шт.

14

KHV13470

CLAMP

2шт.

15

KSV18130

BAR

2шт.

16

KHV10450

COLLAR CLAMP

6шт.

17

KSV18091

BAR

1шт.

18

NSS

NOT SOLD SEPARAT

Adapter, Incl in 20

1шт.

19

154503A1

O-RING

1шт.

20

153001A1

ADAPTER

ASSY, G3/4" x G1", Incl 18, 19

1шт.

21

KHJ2021

HOSE CLAMP

1шт.
