(88.100.35[209]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE

Запчасти Case CX350D LC (88.100.35[209]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE (88) - ACCESSORIES

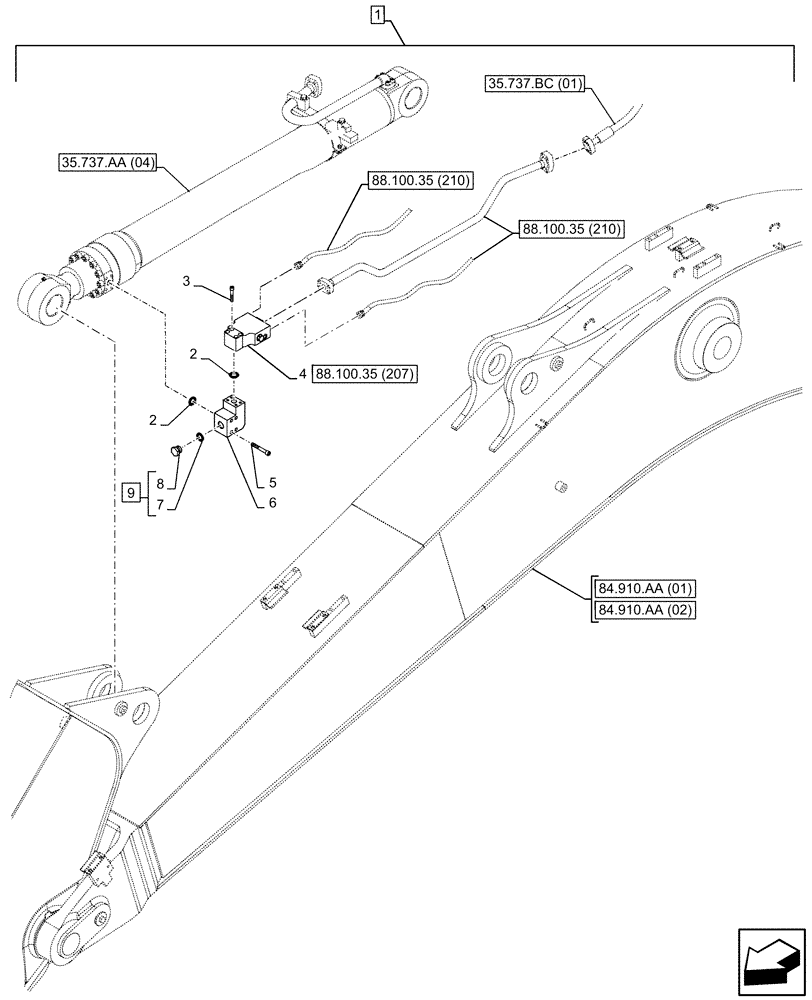

Схема запчастей Case CX350D LC - (88.100.35[209]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE (88) - ACCESSORIES
84.910.aa (01)
7
88.100.35 (207)
88.100.35 (210)
8
4
6
35.737.bc (01)
3
5
1
88.100.35 (210)
35.737.aa (04)
9
2
2
84.910.aa (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1SP092-00

CONSTRUCTION DIA

Hose Burst Check Valve, Incl 2 - 9

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

155211A1

O-RING

2шт.

3

862-12070

HEX SOC SCREW,M12 x 70mm, Cl 12.9

4шт.

4

KSV17260

SAFETY VALVE

ASSY

1шт.

5

108R014Y100R

BOLT

4шт.

6

KSV18920

MANIFOLD VALVE

1шт.

7

154523A1

O-RING

1шт.

8

NSS

NOT SOLD SEPARAT

Plug, Incl in 9

1шт.

9

162659A1

PLUG

ASSY, Incl 7, 8

1шт.
