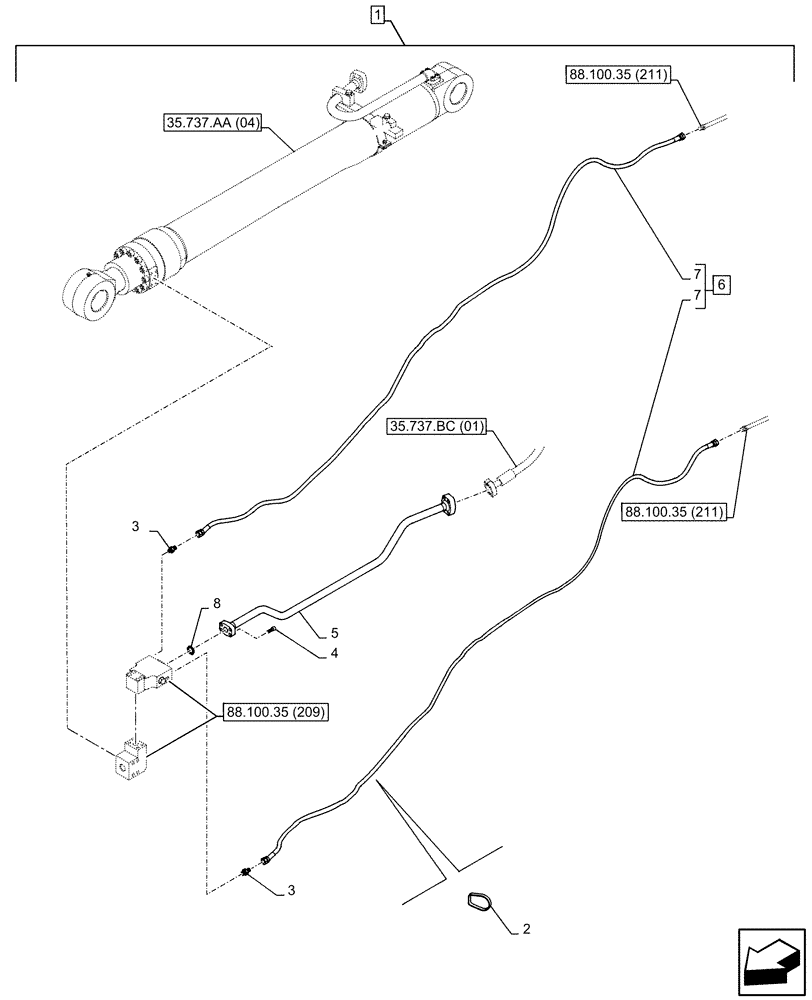

Запчасти Case CX350D LC (88.100.35[210]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, LINE (88) - ACCESSORIES

1

KG1SP092-00

CONSTRUCTION DIA

Hose Burst Check Valve, Incl 2 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

150071A1

MOUNTING CLIP

8шт.

3

KNJ19750

ADAPTER

2шт.

4

862-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

4шт.

5

KSV25830

PIPE

1шт.

6

KSV19000

HOSE ASSY.

ASSY, Incl 7

1шт.

7

KHJ25460

HYDRAULIC HOSE

2шт.

8

155211A1

O-RING

1шт.
