(88.100.35[220]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM (L=4.0M)

Запчасти Case CX350D LC (88.100.35[220]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM (L=4.0M) (88) - ACCESSORIES

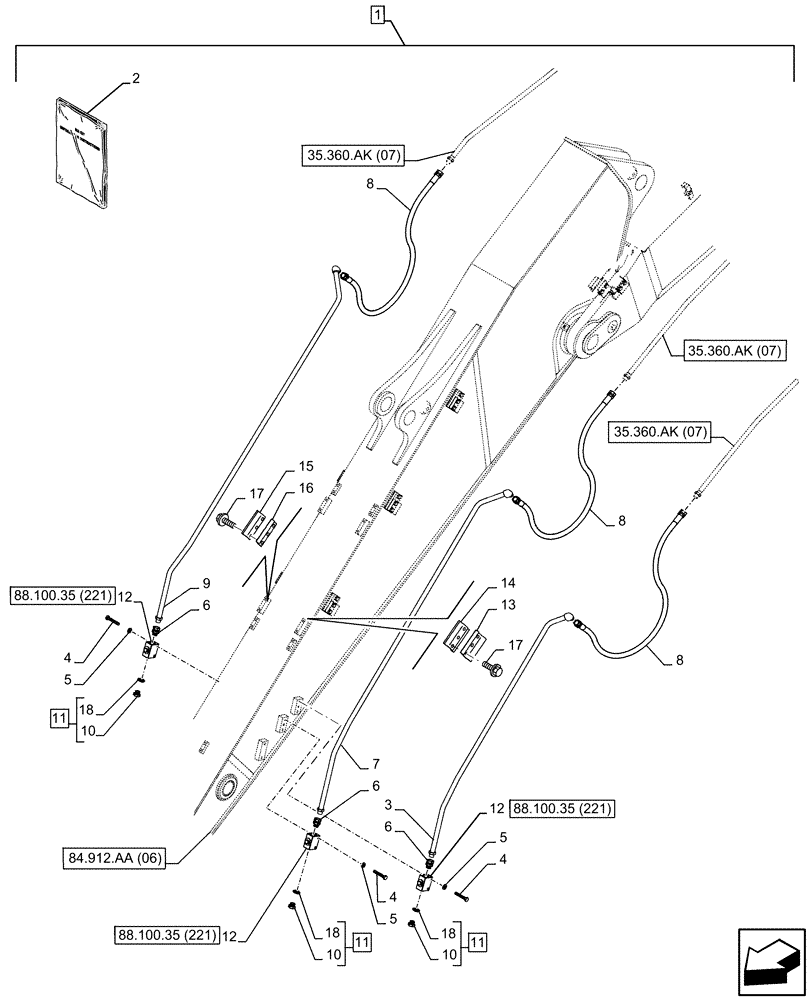

Схема запчастей Case CX350D LC - (88.100.35[220]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM (L=4.0M) (88) - ACCESSORIES
12
8
3
35.360.ak (07)
17
6
9
6
6
14
5
11
11
84.912.aa (06)
1
5
35.360.ak (07)
35.360.ak (07)
10
12
15
2
88.100.35 (221)
4
8
18
11
4
18
8
16
18
7
5
4
10
17
13
88.100.35 (221)
10
88.100.35 (221)
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1SP113-00

CONSTRUCTION DIA

Second Option Line, Incl 2 - 18

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47757374

INSTRUCTION

1шт.

2

47757383

INSTRUCTION

1шт.

3

KSV29440

PIPE

1шт.

4

827-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 10.9

6шт.

5

150811A1

WASHER

6шт.

6

167248A1

FITTING

3шт.

7

KSV29420

PIPE

1шт.

8

KSV29880

HYDRAULIC HOSE

3шт.

9

KSV29430

PIPE

1шт.

10

NSS

NOT SOLD SEPARAT

Plug, Incl in 11

3шт.

11

152924A1

PLUG

ASSY, Incl 10, 18

3шт.

12

KHV10710

VALVE

3шт.

13

KHV10450

COLLAR CLAMP

3шт.

14

KHV11410

PIPE CLAMP

3шт.

15

KHV10460

COLLAR CLAMP

3шт.

16

KHV11420

PIPE CLAMP

3шт.

17

166352A1

BOLT

18шт.

18

154503A1

O-RING

3шт.
