(90.105.CF) - HOOD, FUEL TRANSFER PUMP

Запчасти Case CX350D LC (90.105.CF) - HOOD, FUEL TRANSFER PUMP (90) - PLATFORM, CAB, BODYWORK AND DECALS

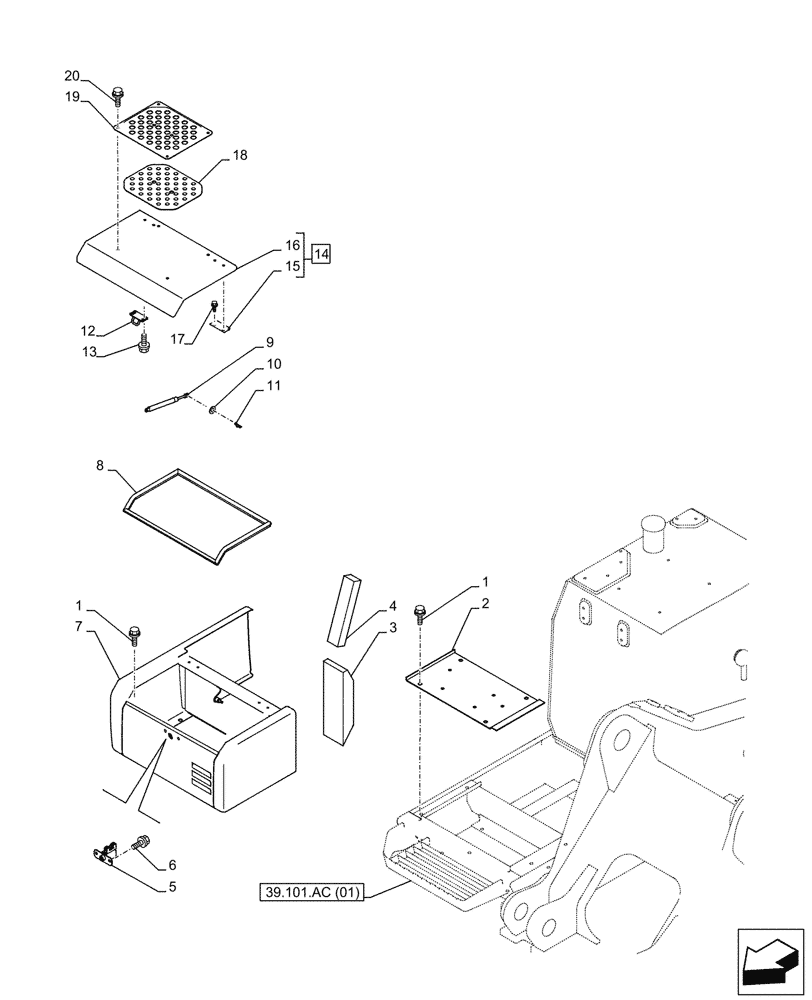

Схема запчастей Case CX350D LC - (90.105.CF) - HOOD, FUEL TRANSFER PUMP (90) - PLATFORM, CAB, BODYWORK AND DECALS
39.101.ac (01)
13
3
11
14
1
2
10
19
7
1
8
20
17
5
9
4
16
12
15
18
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

8шт.

2

KSN17560G1

COVER

1шт.

3

KSN17820

SEAL

, Serial Range: -C0348

1шт.

3

KSN17821

SEAL

, Start Serial: D0348

1шт.

4

KSN17830

SEAL

1шт.

5

KHN35780

LOCK

1шт.

6

166351A1

BOLT,Sems, M10 x 20mm

2шт.

7

KHN36750G1

COVER

1шт.

8

KHN36780

TRIM

1шт.

9

KHN38920

DAMPER

1шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

11

153077A1

COTTER PIN

2шт.

12

KHN12740

SUPPORT

1шт.

13

166350A1

BOLT

2шт.

14

KHN36740G1

COVER

ASSY, Incl 15 - 16

1шт.

15

KHN17220

HINGE

2шт.

16

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

17

KAN2771

BOLT,Spcl

4шт.

18

KHN10940

RUBBER PAD

1шт.

19

KHN13510B1

COVER

1шт.

20

KHN13540

BOLT,Spcl

4шт.
