(90.124.AL[02]) - VAR - 781277 - SEAT, SLIDE GUIDE

Запчасти Case CX350D LC (90.124.AL[02]) - VAR - 781277 - SEAT, SLIDE GUIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

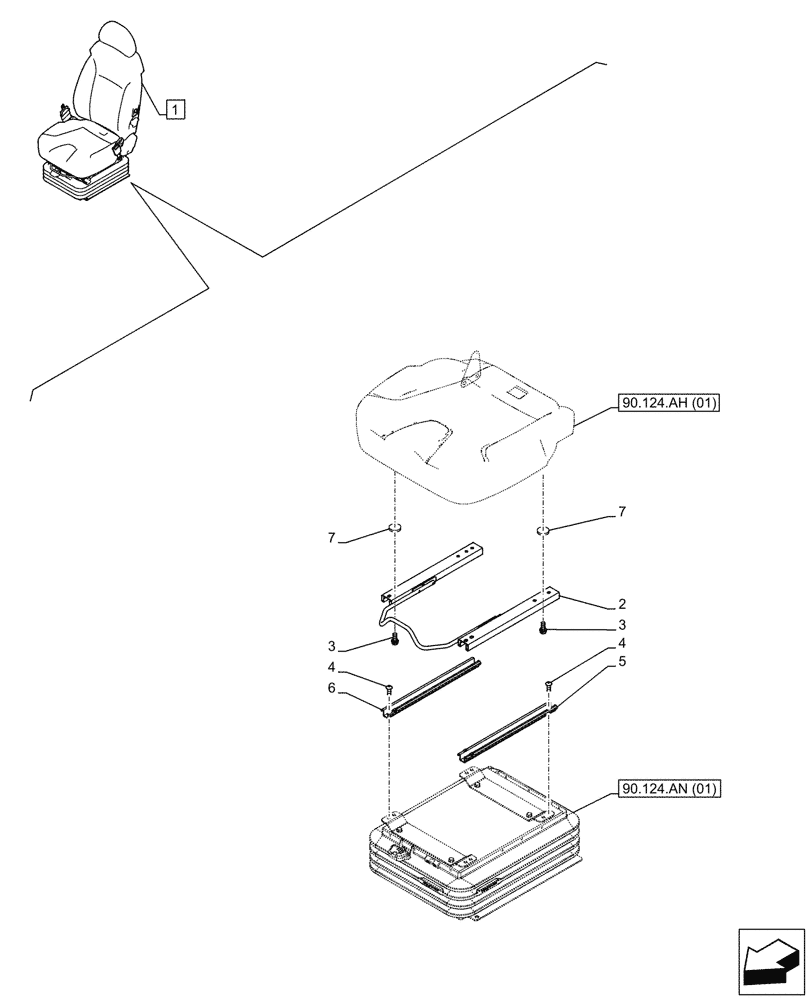

Схема запчастей Case CX350D LC - (90.124.AL[02]) - VAR - 781277 - SEAT, SLIDE GUIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.124.an (01)
7
4
7
6
3
2
1
5
4
3
90.124.ah (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHN42782

DRIVER SEAT

ASSY, Incl 2 - 7

1шт.

See also Figure 90.124.AE (01), 90.124.AF (01), 90.124.AH (01), 90.124.AN (01), 90.151.AD (01)

1шт.

2

KHN40410

LEVER

1шт.

3

KHN40390

BOLT

4шт.

4

KHN40130

BOLT

4шт.

5

KHN40200

SLIDER

LH

1шт.

6

KHN40210

SLIDER

RH

1шт.

7

KHN40400

SCREW

4шт.

Выбрано товаров: 8
