(90.124.AL[03]) - VAR - 488035 - SEAT, SLIDE GUIDE

Запчасти Case CX350D LC (90.124.AL[03]) - VAR - 488035 - SEAT, SLIDE GUIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

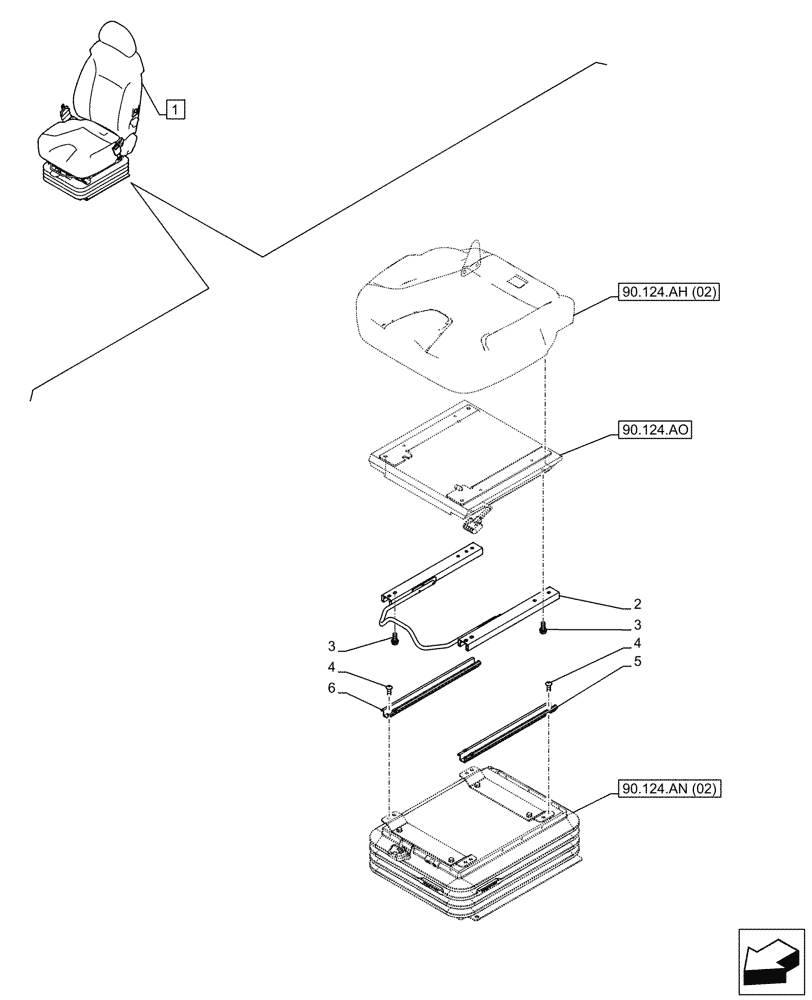

Схема запчастей Case CX350D LC - (90.124.AL[03]) - VAR - 488035 - SEAT, SLIDE GUIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.124.ao
3
5
2
4
4
1
3
6
90.124.ah (02)
90.124.an (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHN42802

DRIVER SEAT

ASSY, Incl 2 - 6

1шт.

See also Figure 90.124.AE (02), 90.124.AF (02), 90.124.AH (02), 90.124.AN (02), 90.151.AD (02)

1шт.

2

KHN40410

LEVER

1шт.

3

KHN40180

BOLT

4шт.

4

KHN40130

BOLT

4шт.

5

KHN40200

SLIDER

LH

1шт.

6

KHN40210

SLIDER

RH

1шт.

Выбрано товаров: 7
