(10.210.AF) - VAR - 481257 - FUEL TRANSFER PUMP, SUPPLY LINE

Запчасти Case CX490D LC (10.210.AF) - VAR - 481257 - FUEL TRANSFER PUMP, SUPPLY LINE (10) - ENGINE

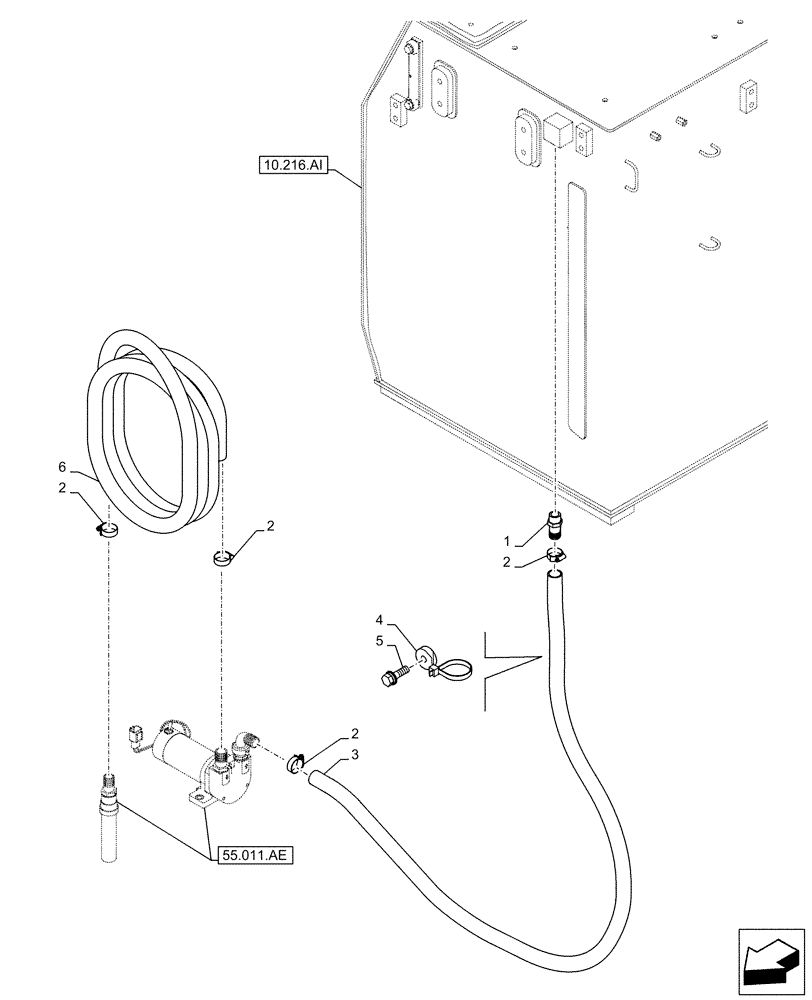

Схема запчастей Case CX490D LC - (10.210.AF) - VAR - 481257 - FUEL TRANSFER PUMP, SUPPLY LINE (10) - ENGINE
55.011.ae
2
2
2
5
2
4
3
1
6
10.216.ai
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR11480

LUBE NIPPLE

1шт.

2

157917A1

COLLAR

4шт.

3

KHR41150

FUEL HOSE

1900mm, from Fuel Tank to Fuel transfer Pump

1шт.

4

KHR2584

CLAMP

1шт.

5

KHJ1215

BOLT,Spcl

M8 x 25mm

1шт.

6

KHR11460

FUEL HOSE

4000mm, from Fuel transfer Pump to Valve Section

1шт.
