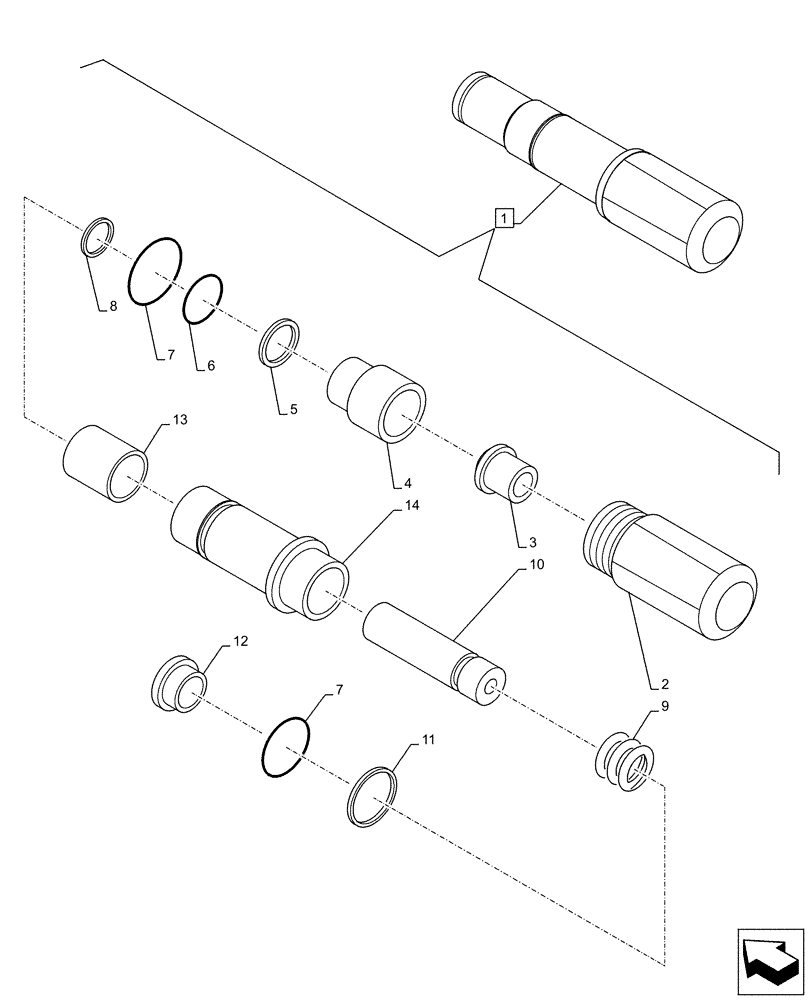

Запчасти Case CX500D LC (35.353.AB) - TRAVEL MOTOR & REDUCTION GEAR, RELIEF VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

LJ00958

VALVE, PRESSURE RELI

ASSY, Incl 2 - 15

1шт.

See also Figure 35.353.AD 02, 35.353.AD 03, 35.353.AG

1шт.

2

LR00864

CAP

1шт.

3

LJ00961

PISTON

1шт.

4

LH00322

SLEEVE

1шт.

5

153943A1

BACK-UP RING

2шт.

6

154451A1

O-RING

1шт.

7

154509A1

O-RING

2шт.

8

LH00323

SHIM

1шт.

9

LG00432

COMPRESSION SPRING

1шт.

10

LJ00960

PISTON

1шт.

11

153987A1

BACK-UP RING

1шт.

12

LR00863

SEAT, VALVE

1шт.

13

LK00386

SOCKET

1шт.

14

LJ00959

VALVE

1шт.
