(55.950.AA) - VAR - 461869 - SELECTOR VALVE, HARNESS, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX500D LC (55.950.AA) - VAR - 461869 - SELECTOR VALVE, HARNESS, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS

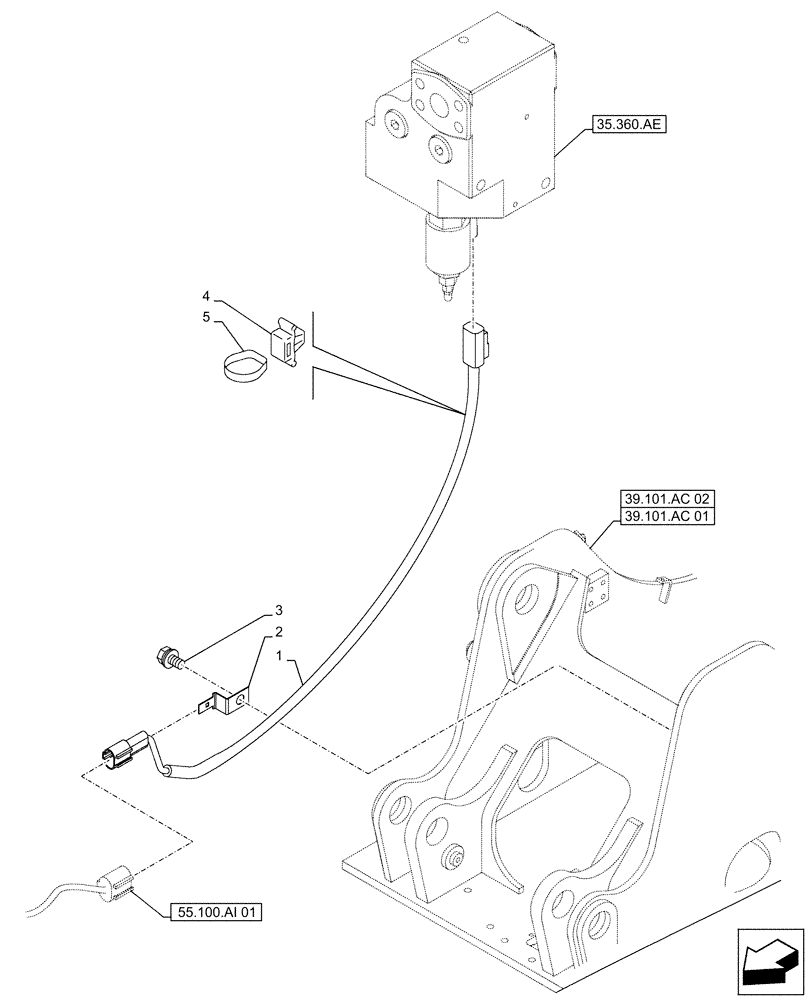

Схема запчастей Case CX500D LC - (55.950.AA) - VAR - 461869 - SELECTOR VALVE, HARNESS, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS
39.101.ac 01
5
2
4
1
3
39.101.ac 02
55.100.ai 01
35.360.ae
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR41540

WIRE HARNESS

1шт.

2

158962A1

CLIP

1шт.

3

167518A1

BOLT

M8 x 16mm

1шт.

4

KHR10220

MOUNTING CLIP

1шт.

5

150496A1

MOUNTING CLIP

250mm

1шт.
