(88.100.55[01]) - DIA KIT, FUEL TRANSFER PUMP

Запчасти Case CX500D LC (88.100.55[01]) - DIA KIT, FUEL TRANSFER PUMP (88) - ACCESSORIES

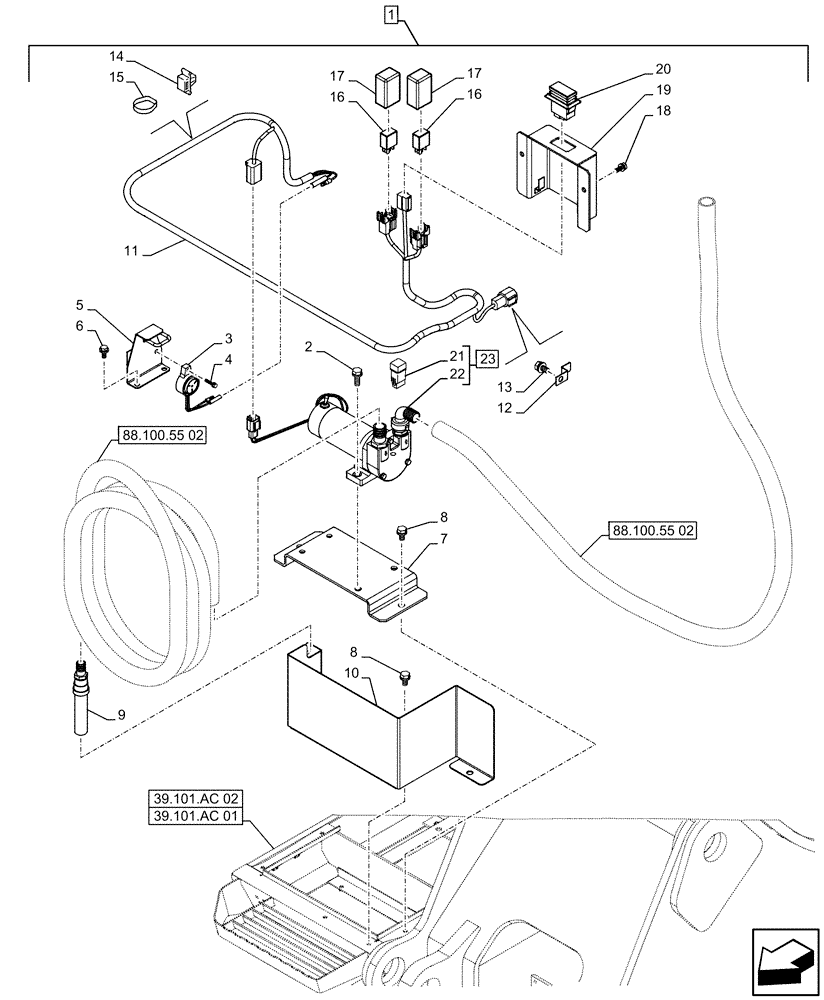

Схема запчастей Case CX500D LC - (88.100.55[01]) - DIA KIT, FUEL TRANSFER PUMP (88) - ACCESSORIES
19
22
15
10
6
88.100.55 02
14
39.101.ac 02
11
88.100.55 02
20
8
16
9
17
16
7
39.101.ac 01
18
5
13
8
1
12
23
4
2
17
21
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0TR243-00

CONSTRUCTION DIA

Fuel Feed Pump, Incl 2 - 23

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

166347A1

BOLT,Sems, M10 x 30mm

2шт.

3

KHR4024

ALARM

feed pump

1шт.

4

KHR1832

SPECIAL BOLT

M5 x 25mm

1шт.

5

KHR39440

BRACKET

1шт.

6

166345A1

BOLT

M8 x 16mm

2шт.

7

KHR12860

SUPPORT

1шт.

8

166351A1

BOLT,Sems, M10 x 20mm

5шт.

9

KHR12430

VALVE SECTION

50L/min

1шт.

10

KHR39430

COVER

1шт.

11

KHR34760

WIRE HARNESS

1шт.

12

KHR16450

CLIP

1шт.

13

KHJ1215

BOLT,Spcl

1шт.

14

KHR10220

MOUNTING CLIP

6шт.

15

150496A1

MOUNTING CLIP

250mm

6шт.

16

KHR3802

RELAY

Relay condenser, 24V

2шт.

17

159904A1

COVER

2шт.

18

159602A1

BOLT,Sems, Hex, M6 x 16mm

2шт.

19

KHR15080

COVER

1шт.

20

KHR12900

SWITCH

Feed pump switch

1шт.

21

KHR4053

FUSE

10A

1шт.

22

NSS

NOT SOLD SEPARAT

Feed Pump, Incl in 23

1шт.

23

KHR12840

FUEL PUMP

ASSY, Feed pump, Incl 21, 22

1шт.
