(35.360.160) - VAR - 461868, 461869, 461871 - BOOM, LINE, HAMMER, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX750D RTC (35.360.160) - VAR - 461868, 461869, 461871 - BOOM, LINE, HAMMER, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

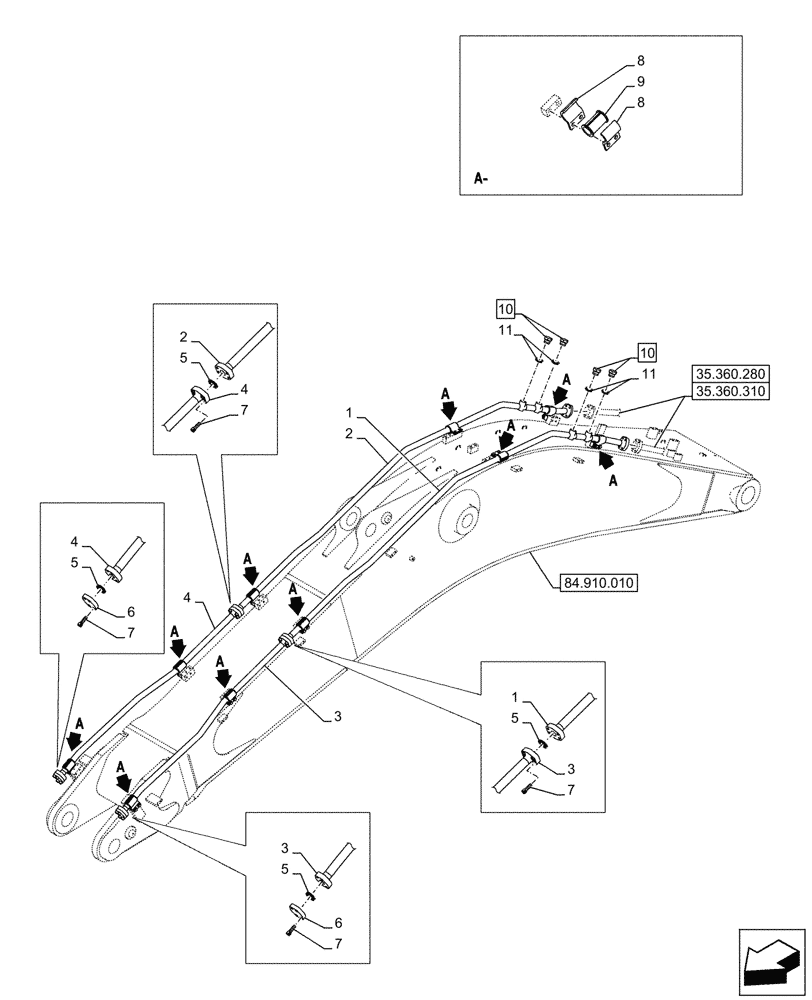

Схема запчастей Case CX750D RTC - (35.360.160) - VAR - 461868, 461869, 461871 - BOOM, LINE, HAMMER, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
35.360.310
3
4
2
4
11
5
5
4
7
10
1
7
3
6
5
10
1
8
5
8
2
7
3
7
6
9
11
84.910.010
35.360.280
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KWV0062

HYD TUBE,38.6 mm ID x 48.6 mm OD

1шт.

2

KWV0063

HYD TUBE,38.6 mm ID x 48.6 mm OD

1шт.

3

KWV11321

PIPE

1шт.

4

KWV11331

PIPE

1шт.

5

162484A1

O-RING

4шт.

6

KUP0008

COUPLING FLANGE

2шт.

7

862-16050

HEX SOC SCREW,M16 x 50mm, Cl 12.9

16шт.

8

KWV0089

CLAMP

20шт.

9

KWV11560

GROMMET

10шт.

10

162659A1

PLUG

ASSY, Incl 11

4шт.

11

152211A1

O-RING

4шт.
