(35.360.180) - VAR - 461561, 461563, 461865, 461868, 461869 , 461871 - BOOM, LINE, HAMMER, SHEARS, HIGH FLOW

Запчасти Case CX750D RTC (35.360.180) - VAR - 461561, 461563, 461865, 461868, 461869 , 461871 - BOOM, LINE, HAMMER, SHEARS, HIGH FLOW (35) - HYDRAULIC SYSTEMS

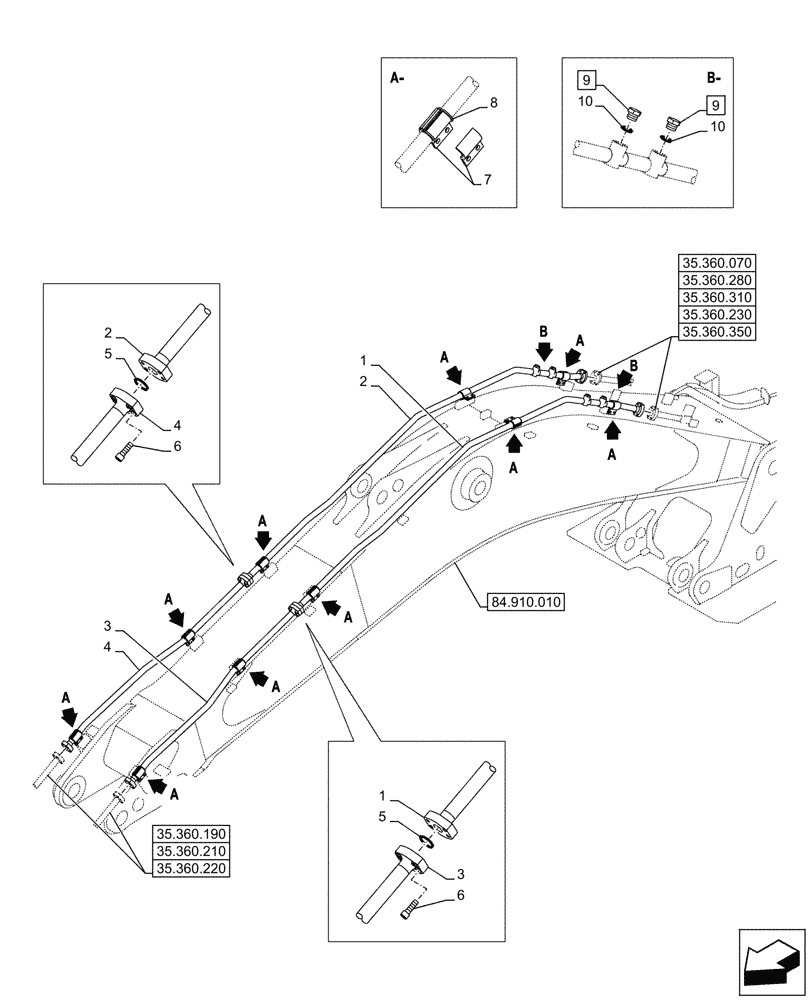

Схема запчастей Case CX750D RTC - (35.360.180) - VAR - 461561, 461563, 461865, 461868, 461869 , 461871 - BOOM, LINE, HAMMER, SHEARS, HIGH FLOW (35) - HYDRAULIC SYSTEMS
35.360.230
5
9
2
1
6
4
7
10
3
3
4
1
2
10
9
5
8
35.360.190
84.910.010
35.360.280
35.360.220
6
35.360.310
35.360.210
35.360.350
35.360.070
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KWV0062

HYD TUBE,38.6 mm ID x 48.6 mm OD

1шт.

2

KWV0063

HYD TUBE,38.6 mm ID x 48.6 mm OD

1шт.

3

KWV11321

PIPE

1шт.

4

KWV11331

PIPE

1шт.

5

162484A1

O-RING

2шт.

6

862-16050

HEX SOC SCREW,M16 x 50mm, Cl 12.9

8шт.

7

KWV0089

CLAMP

20шт.

8

KWV11560

GROMMET

10шт.

9

162659A1

PLUG

ASSY, Incl 10

4шт.

10

152211A1

O-RING

4шт.
