(35.360.210) - VAR - 461561, 461563, 461865, 461868, 461869, 461871 - ARM, LINES, HAMMER, SHEARS, HIGH FLOW (ARM L=3.55M)

Запчасти Case CX750D RTC (35.360.210) - VAR - 461561, 461563, 461865, 461868, 461869, 461871 - ARM, LINES, HAMMER, SHEARS, HIGH FLOW (ARM L=3.55M) (35) - HYDRAULIC SYSTEMS

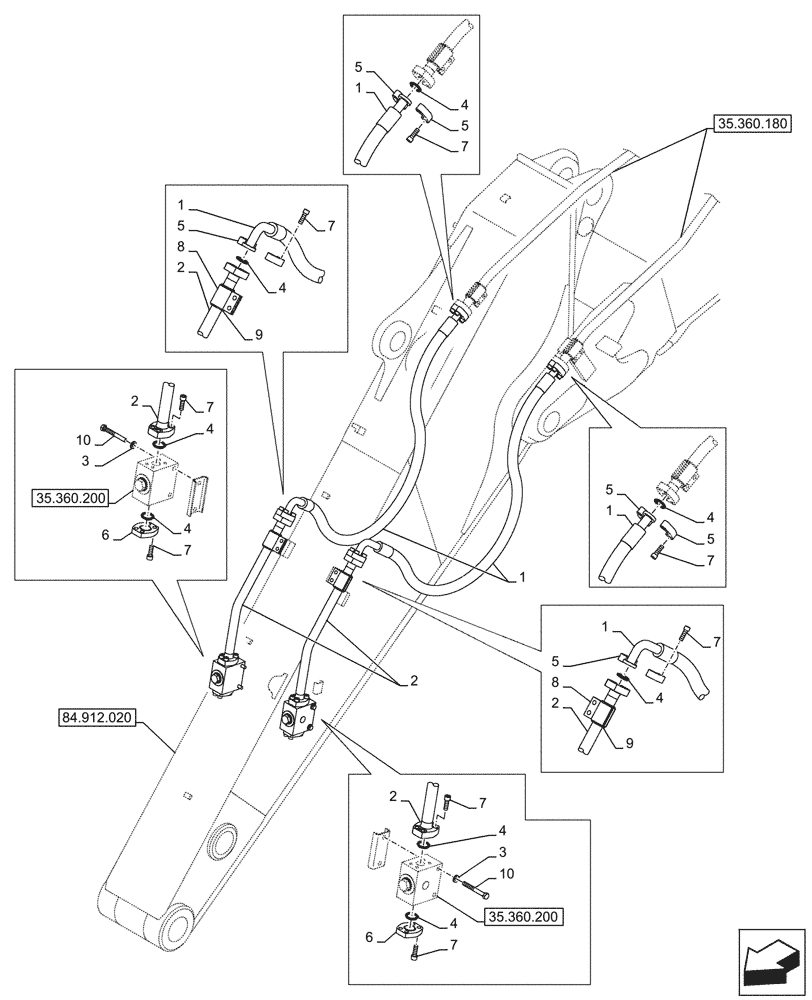

Схема запчастей Case CX750D RTC - (35.360.210) - VAR - 461561, 461563, 461865, 461868, 461869, 461871 - ARM, LINES, HAMMER, SHEARS, HIGH FLOW (ARM L=3.55M) (35) - HYDRAULIC SYSTEMS
84.912.020
5
1
1
4
8
6
4
5
7
3
8
1
1
5
1
3
4
2
9
6
7
10
7
4
2
7
4
4
7
7
5
4
7
2
10
7
5
2
4
2
9
5
35.360.180
35.360.200
35.360.200
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KWV11360

HYDRAULIC HOSE

38mm ID x 2500mm

2шт.

2

KWV11340

HYD TUBE,38.6 mm ID x 48.6 mm OD

2шт.

3

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

4шт.

4

162484A1

O-RING

8шт.

5

KTJ0169

FLANGE

8шт.

6

KUP0008

COUPLING FLANGE

2шт.

7

862-16050

HEX SOC SCREW,M16 x 50mm, Cl 12.9

32шт.

8

KWV0089

CLAMP

4шт.

9

KWV11560

GROMMET

2шт.

10

827-16130

BOLT,Hex, M16 x 2 x 130mm, Cl 10.9

4шт.
