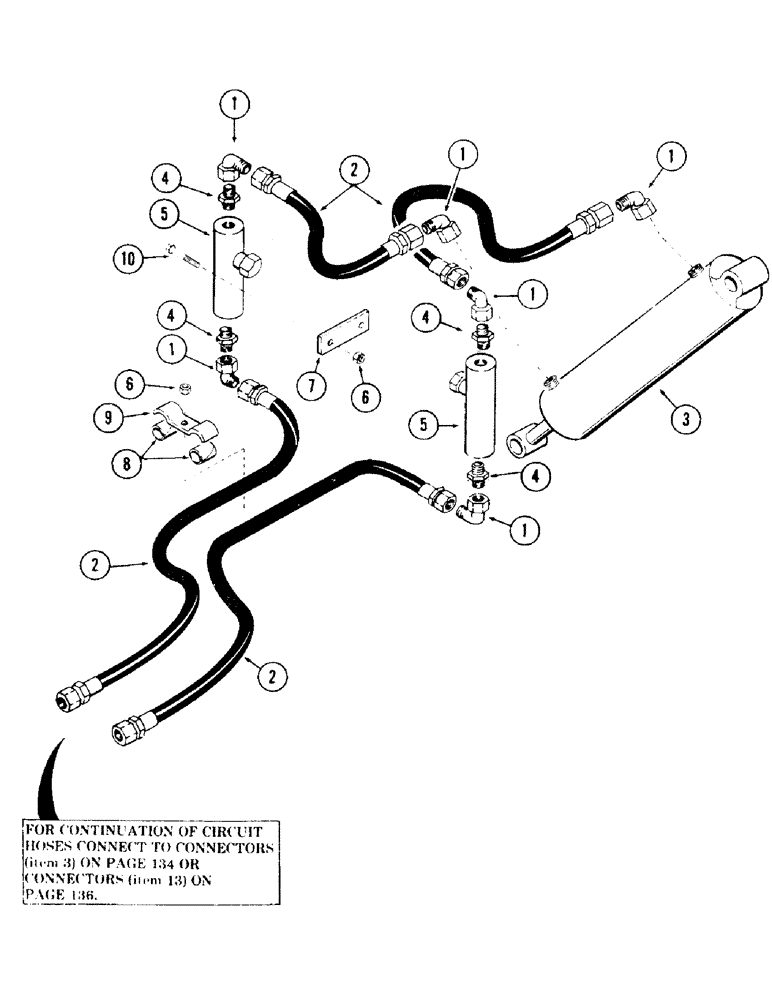

Запчасти Case 35 (114) - WRIST-O-TWIST TUBINGS (84) - BOOMS, DIPPERS & BUCKETS

1

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

90 degrees swivel - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 female - 37 degrees flared

6шт.

2

S11226

HOSE

high pressure - 3/8" ID x 20" long - (3/4" - 16 female pressed on couplings)

4шт.

3

REF

INSTRUCTION

CYLINDER, wrist-o-twist - (For breakdown, see Fig. 158)

1шт.

4

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - (1/2" tube) - 3/4" - 16 male x 1/2" NPT male - 37 degrees flared

4шт.

5

REF

INSTRUCTION

VALVE, flow control - (For breakdown, see Fig. 186)

2шт.

6

131-468

NUT,1 1/2"-12

NUT, self locking - 3/8" NC

5шт.

7

S81912

PLATE - (Mounts flow control valves)

2шт.

8

S75792

RING

compression

2шт.

9

D38835

CLAMP

1шт.

10

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

Used on units with pin 6266131 thru 6266279 Hex, 3/8"-16 x 3", G5

4шт.

113-138

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

- 3/8" NC x 3-1/4" gr 5 - (Used on units with PIN 6266280 and after)

4шт.
