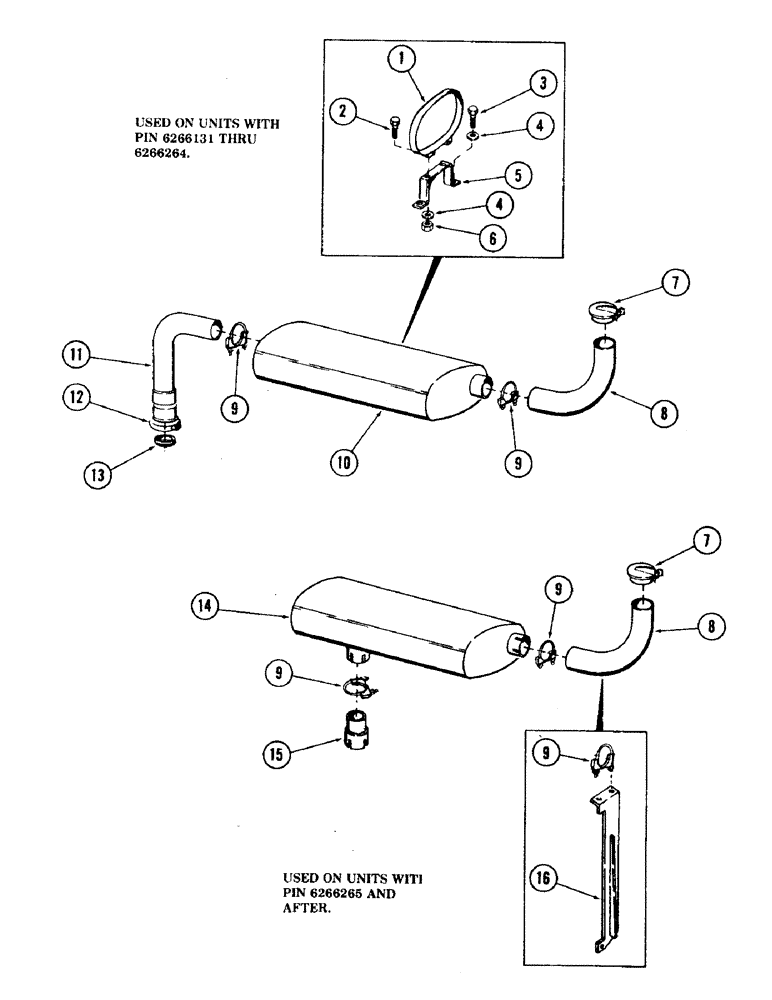

Запчасти Case 35 (024) - MUFFLER AND ATTACHING PARTS, (USED ON CASE 336BDT DIESEL ENGINES) (10) - ENGINE

1

S219850

BAND

muffler mounting

2шт.

2

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(Band to bracket) Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

3

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

(Bracket to shroud) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

4

195-525

WASHER,3/8", SAE

flat - 3/8"

8шт.

5

S233209

BRACKET

muffler mounting

2шт.

6

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC

4шт.

7

A19795

CAP

exhaust pipe

1шт.

8

S99158

ELBOW

PIPE, exhaust

1шт.

9

L12413

CLAMP

exhaust pipe

1шт.

10

S508420

MUFFLER

1шт.

11

S233624

ELBOW

exhaust

1шт.

12

S107151

CLAMP

exhaust

1шт.

13

S107152

GASKET

exhaust flange

1шт.

14

S231674

MUFFLER

1шт.

15

S513653

ADAPTER

1шт.

16

S513651

BRACKET, muffler mounting

1шт.
