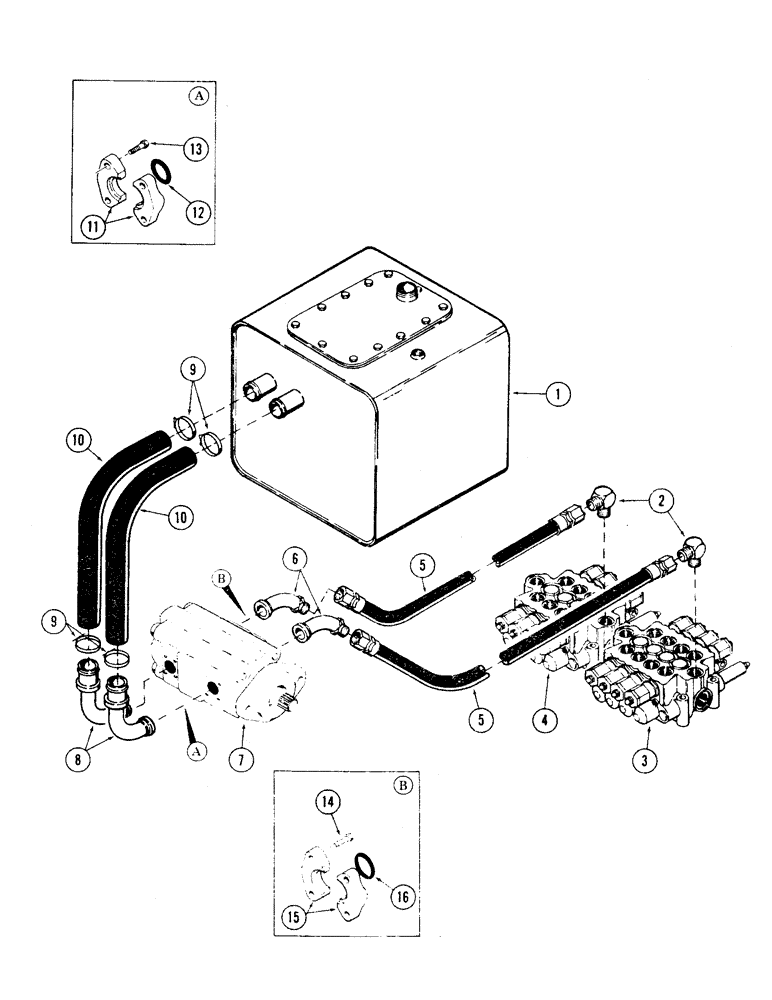

Запчасти Case 35 (116) - OIL TANK TO PUMP TO VALVES TUBING (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

TANK, hydraulic oil - (For breakdown, see Fig. 160 or 162)

1шт.

2

S113093

ELBOW

90 degrees - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degrees flared

2шт.

3

REF

INSTRUCTION

VALVE, 4-spool main control - (Inside) - (For breakdown, see Fig. 198)

1шт.

4

REF

INSTRUCTION

VALVE, 4-spool main control - (Outside) - (For breakdown, see Fig. 194 or 196)

1шт.

5

S8628

HOSE

high pressure - 1" ID x 36" long - (With 1-5/16" - 12 female pressed on couplings)

2шт.

6

S232093

FITTING

TUBE, hydraulic

2шт.

7

REF

INSTRUCTION

PUMP, hydraulic - (Used with CASE 336 BDT diesel engine) - (For breakdown, see Fig. 172)

1шт.

REF

INSTRUCTION

PUMP, hydraulic - (Used with Detroit diesel 4-53 engine) - (For breakdown, see Fig. 174)

1шт.

8

S233844

TUBE, hydraulic

2шт.

9

S85430

CLAMP

4шт.

10

S202867

HOSE, low pressure - (Bulk) - 2 pieces - 2" ID x 30" long

1шт.

11

A14157

FLANGE

split

4шт.

12

S6589

O-RING

"O" RING - 1.859" ID x 2.125" OD

2шт.

13

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

14

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

15

A12036

FLANGE, split

4шт.

16

S6582

O-RING,1.234" ID x 1.512" OD x 0.139"

"O" RING - 1.234" ID x 1.500" OD

2шт.
