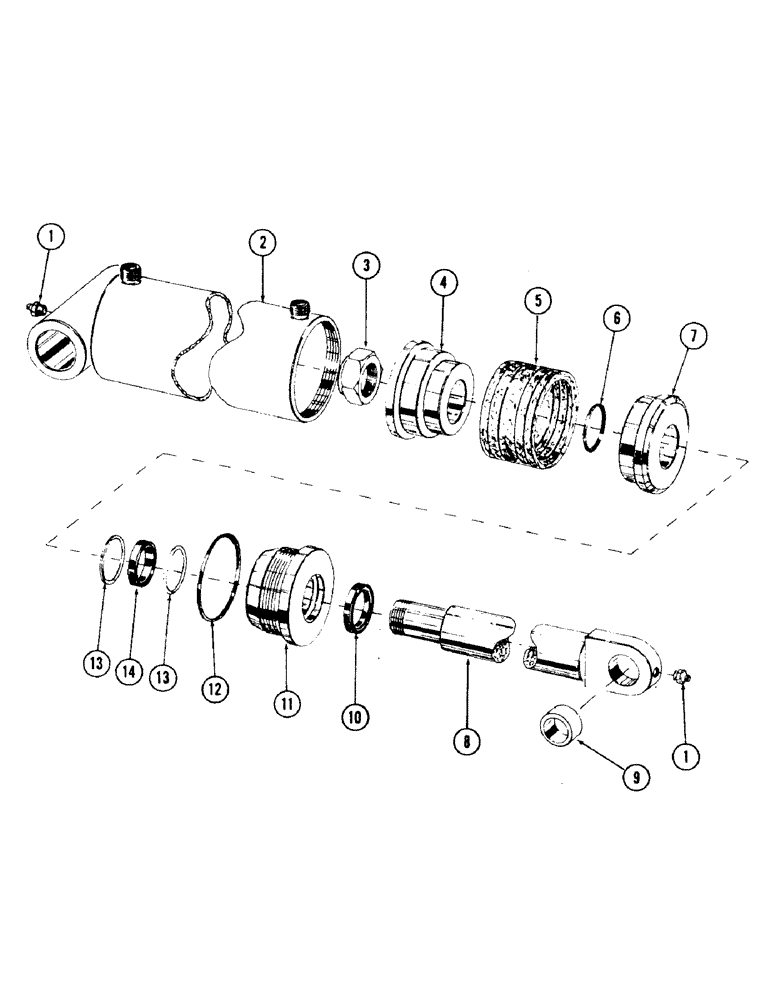

Запчасти Case 35 (158) - WRIST-O-TWIST, (6.25" ID X 4.46" STROKE) (35) - HYDRAULIC SYSTEMS

S37583

CYLINDER

wrist-o-twist

1шт.

1

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, lube - 1/8" NPT (Straight)

2шт.

2

S206998

TUBE,13.84" L

cylinder

1шт.

3

S23007

NUT

1шт.

4

S26052

PISTON

- with "o" ring seat

1шт.

5

S26050

GROMMET

"V" RING CUP ASSEMBLY

1шт.

6

S5811

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

"O" RING - 1.234" ID x 1.500" OD

1шт.

7

S26053

PISTON

half

1шт.

8

S206996

PISTON ROD

ROD, piston

1шт.

9

S202071

BUSHING

1шт.

10

A17672

SEAL

RING, wiper

1шт.

11

S28553

HEAD

cylinder

1шт.

12

S6332

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - 3.984" ID x 4.250" OD

1шт.

13

T11023

SEAL

RING, back up

2шт.

14

S5922

O-RING,1.975" ID x 2.395" OD x 0.21"

"O" RING - 1.975" ID x 2.375" OD

1шт.
