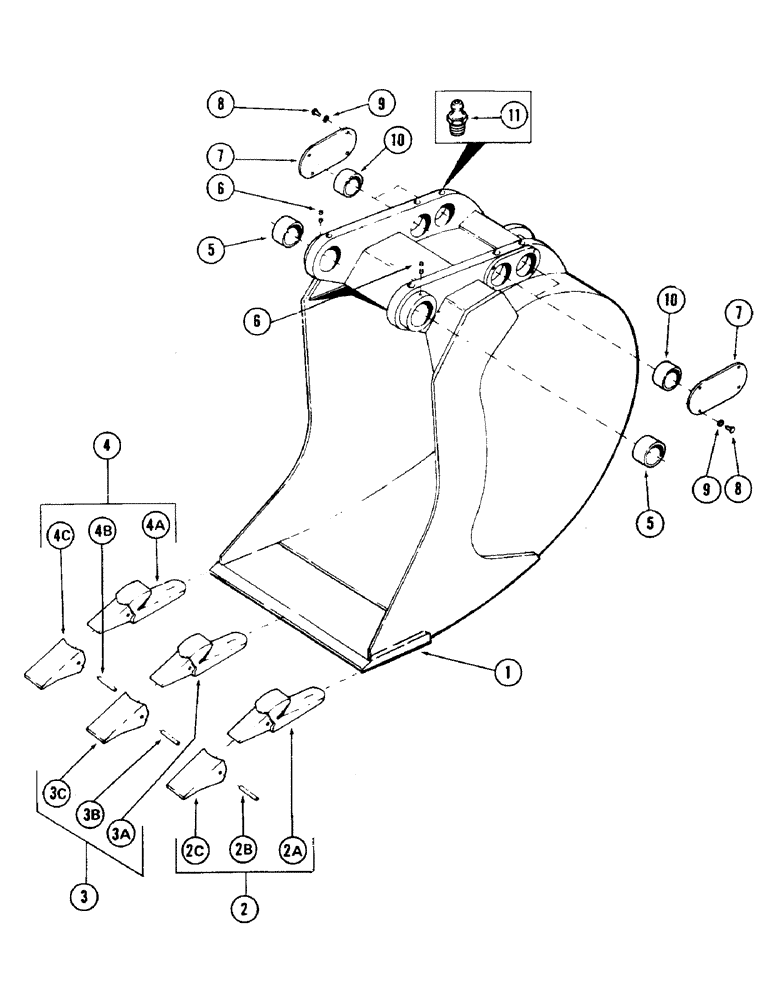

Запчасти Case 40 (134) - BACKHOE BUCKETS, (GENERAL PURPOSE), 1/2 CU. YD. BACKHOE BUCKET (30" WIDE) (84) - BOOMS, DIPPERS & BUCKETS

S955091

BUCKET ASSEMBLY - backhoe - 1/2 cu. yd.

1шт.

1

S216317

EDGE, cutting - 30"

1шт.

2

S510490

TOOTH

ASSEMBLY - right outside (Parts list below)

1шт.

3

S503108

TOOTH

ASSEMBLY - center (Parts list below)

2шт.

4

S510491

TOOTH

ASSEMBLY - left outside (Part list below)

1шт.

S955093

BUCKET ASSEMBLY - backhoe - 3/4 cubic yard

1шт.

1

S216318

EDGE, CUTTING

- 36", 3/4 cubic yard backhoe bucket

1шт.

2

S510490

TOOTH

ASSEMBLY - right outside (Parts list below), 3/4 cubic yard backhoe bucket (36 inches wide)

1шт.

3

S503108

TOOTH

ASSEMBLY - center (Parts list below), 3/4 cubic yard backhoe bucket (36 inches wide

3шт.

4

S510491

TOOTH

ASSEMBLY - left outside (Parts list below), 3/4 cubic yard backhoe bucket (36 inches wide

1шт.

S955095

BUCKET ASSEMBLY - backhoe - 1 cubic yard (42 inches wide)

1шт.

1

S216319

EDGE, cutting - 42", 1 cubic yard

1шт.

2

S510490

TOOTH

ASSEMBLY - right outside (Parts list below), 1 cubic yard (42 inches wide)

1шт.

3

S503108

TOOTH

ASSEMBLY - center (Parts list below), 1 cubic yard (42 inches wide)

4шт.

4

S510491

TOOTH

ASSEMBLY - left outside (Parts list below), 1 cubic yard (42 inches wide)

1шт.

2

S510490

TOOTH

ASSEMBLY - right outside

1шт.

2a

S609960

SHANK

tooth, assemblies

1шт.

2b

138-316

LOCK PIN,1/2" x 2 1/2", Slotted

PIN, , Tooth assemblies 1/2" x 2 1/2", Slotted

1шт.

2c

S503093

POINT

TIP, tooth, assemblies

1шт.

3

S503108

TOOTH

ASSEMBLY - center

1шт.

3a

S59402

SHANK

tooth, assemblies

1шт.

3b

138-316

LOCK PIN,1/2" x 2 1/2", Slotted

PIN, , Tooth assemblies 1/2" x 2 1/2", Slotted

1шт.

3c

S503093

POINT

TIP, tooth, assemblies

1шт.

4

S510491

TOOTH

ASSEMBLY - left hand

1шт.

4a

S609961

SHANK, BUCKET TOOTH

SHANK, tooth, assemblies

1шт.

4b

138-316

LOCK PIN,1/2" x 2 1/2", Slotted

PIN, , Tooth assemblies 1/2" x 2 1/2", Slotted

1шт.

4c

S503093

POINT

TIP, tooth, assemblies

1шт.

5

S234483

BUSHING

bucket related parts

2шт.

6

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, set - 3/8" NC x 3/8" (Cup point), bucket related parts

4шт.

7

S229978

COVER

bucket related parts

2шт.

8

192-21

LOCK WASHER,3/8"

BOLT NC x 7/8" Gr 8, bucket related parts 3/8"

8шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Bucket related parts 3/8"

8шт.

10

S229988

BUSHING

bucket related parts

4шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, lube - 1/8" NPT (Straight), bucket related parts

6шт.
