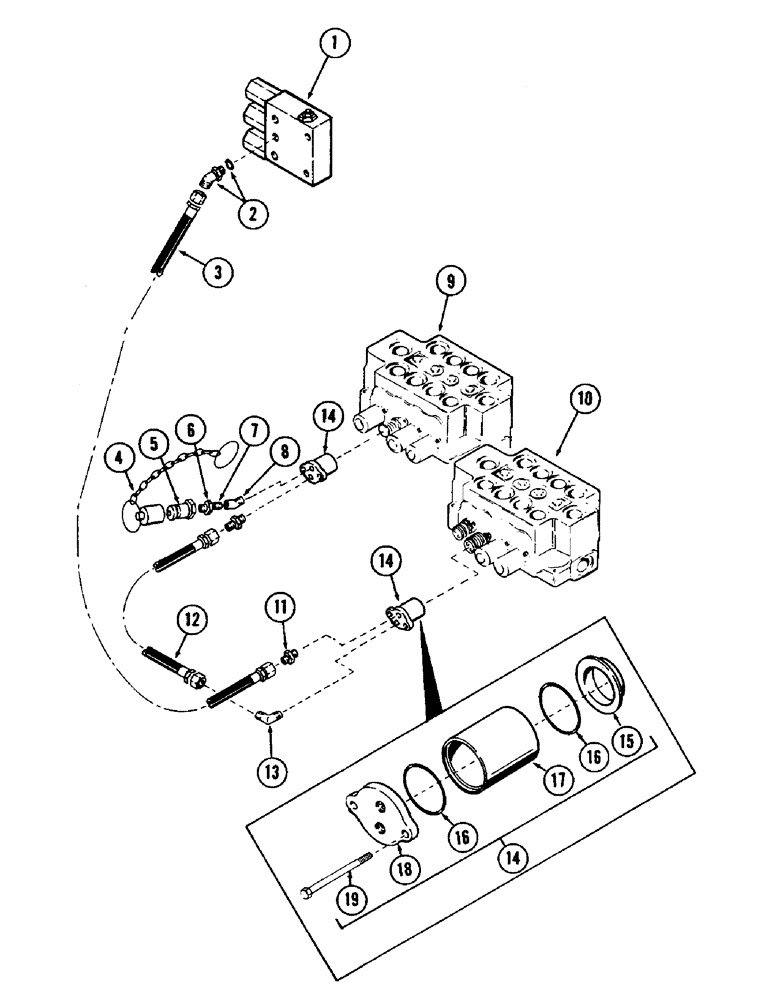

Запчасти Case 40 (200) - DRIVE LOCK TUBING (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

VALVE, solenoid monoblock (For breakdown, see Figure 244 or 246)

1шт.

2

S11252

ELBOW

45 degrees adjustable (3/8" tube) - 9/16" - 18 male x 9/16" - 18 male - 37 degrees flared

1шт.

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

3

S227396

HOSE ASSY.

High pressure - 3/8" ID x 50" long (With 9/16"-18 female pressed on couplings)

1шт.

4

S206608

CAP

Dust

1шт.

5

S206607

DISC

DISCONNECT, quick

1шт.

6

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

BUSHING, 1/4" NPT male x 1/8" NPT female

1шт.

7

221-101

PIPE,Nipple, 1/8" NPT x 3/4"

1шт.

8

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

1шт.

9

REF

INSTRUCTION

VALVE, 4 spool main control (Outside) (For breakdown, see Figure 260 or 262)

1шт.

10

REF

INSTRUCTION

VALVE, 4-spool main control (Inside) (For breakdown, see Figure 258)

1шт.

11

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

Adapter (3/8" tube)

2шт.

12

S227395

HOSE

High pressure - 3/8" ID x 21" long (With 9/16"-18 female pressed on couplings)

1шт.

13

218-492

90 ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

(3/8" tube) - 9/16"-18 male x 1/8" NPT male - 37 degrees flared

1шт.

14

S232345

KIT

Spool end cap

2шт.

15

S111267

WASHER

1шт.

16

S6394

O-RING

2шт.

17

S111268

SLEEVE

TUBE, cylinder

1шт.

18

S111269

HEAD

1шт.

19

S95658

BOLT

3/8" NC x 3-1/4" Gr 8

2шт.
