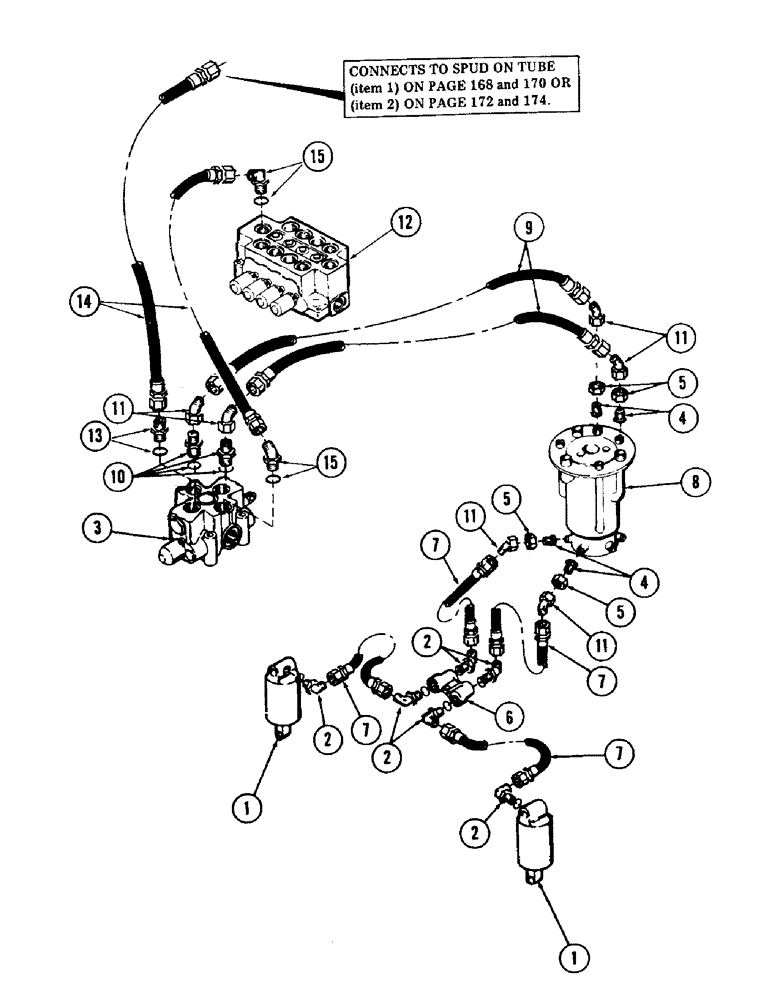

Запчасти Case 40 (205A) - LEVELER TUBING, (USED ON UNITS WITH LEVELER AND AUXILIARY TUBING) (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

CYLINDER, leveler (For breakdown, see Figure 216)

2шт.

2

S7939

ELBOW

90 degrees swivel (1/2" tube) - 3/4"-16 male x 3/4" - female - 37 degrees flared

6шт.

S6061

O-RING,0.639" ID x 0.09" Width

6шт.

3

REF

INSTRUCTION

VALVE, 1 spool main control (For breakdown, see Figure 256)

1шт.

4

218-796

REDUCER,37 Degree, 5/8" x 3/8" Tube

ADAPTER, (3/4" to 1/2" tube reduction) - 3/4"-16 male - 37 degrees flared

4шт.

5

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

(3/4" tube)

4шт.

6

REF

INSTRUCTION

VALVE, check (For breakdown, see Figure 240)

1шт.

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

(Valve mounting)

2шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

2шт.

195-102

WASHER,1/4"

2шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

7

S11226

HOSE

High pressure - 3/8" ID x 20" long (With 3/4"-16 female pressed on couplings)

4шт.

8

REF

INSTRUCTION

SWIVEL, 7-port (For breakdown, see Figure 220)

1шт.

9

S11231

HOSE ASSY.

High pressure - 3/8" ID x 68" long (With 3/4"-16 female pressed on couplings)

2шт.

10

S111648

CONNECTOR, ELEC

CONNECTOR (1/2" tube) - 1-5/16"- 2 male x 3/4"-16 male - 37 degrees flared

2шт.

S6069

O-RING,1.171" ID x 0.116" Width

2шт.

11

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

(1/2" tube)

6шт.

12

REF

INSTRUCTION

VALVE, 4-spool main control (For breakdown, see Figure 262)

1шт.

13

S7972

CONNECTOR, ELEC

CONNECTOR (1" tube) - 1-5/16"-12 male x 1-5/16"-12 male - 37 degrees flared

3шт.

S6069

O-RING,1.171" ID x 0.116" Width

1шт.

14

S8628

HOSE

High pressure - 1" ID x 36" long (With 1-5/16"-12 female pressed on couplings)

2шт.

15

S11257

FITTING

ELBOW, 45 degrees adjustable (1" tube) - 1-5/16" - 12 male x 1-5/16"-12 male - 37 degrees flared

2шт.

S6069

O-RING,1.171" ID x 0.116" Width

2шт.
