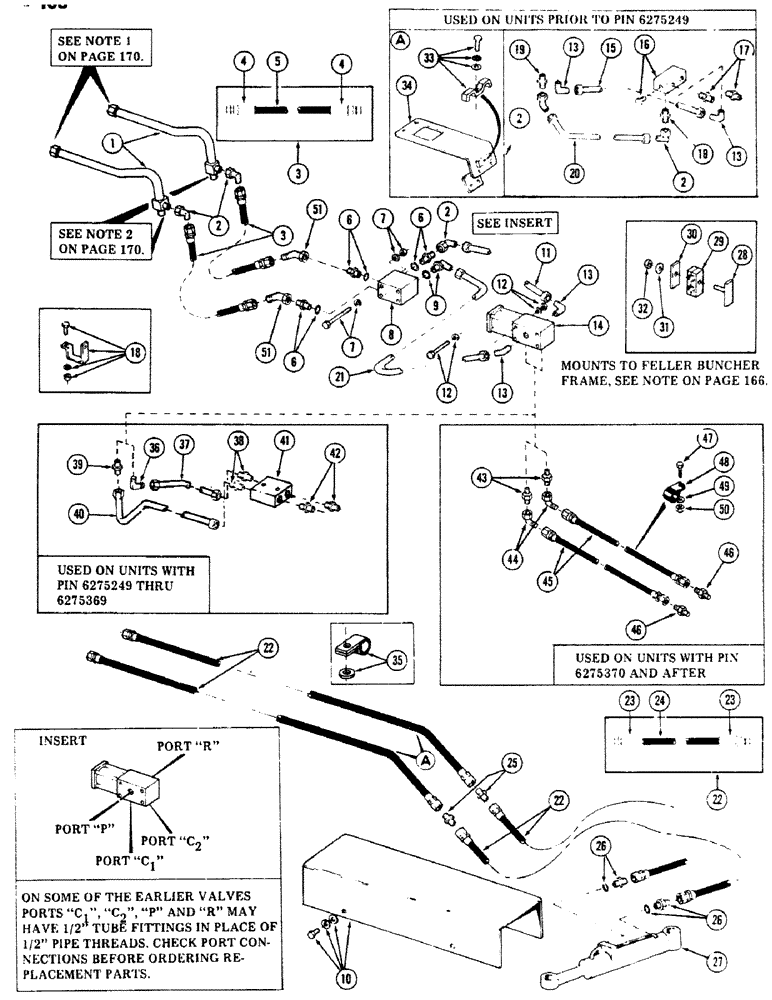

Запчасти Case 40BLC (168) - FELLER BUNCHER COLLECTOR TUBING, (USED WITH 20" AND 24" FELLER BUNCHER TUBING) (07) - HYDRAULIC SYSTEM

1

S226584

SPARE PART Hydraulic

1шт.

Ref. no. 1 replaces hydraulic lines ref. no. 10 and connects to hydraulic lines ref. no. 11on page 172.

1шт.

Spuds on hydraulic lines, ref. no. 1, connect to hose, ref. no. 21 on page 172.

1шт.

2

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

5/8" tube

1шт.

3

S8700

SPARE PART Hydraulic, 1/2" (12.7 mm) ID x 36" (914.4 mm) long

2шт.

4

220-204

FITTING

COUPLING - reusable, 1/2" ID hose x 7/8" - 14

2шт.

5

REF

INSTRUCTION

HOSE, hydraulic, 1/2" (12.7 mm) ID x 33" (838.2 mm) long (Cut from A21572)

1шт.

6

218-5174

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Female JIC

5/8" tube

3шт.

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

(23.5 mm) ID x 1.156" (29.4 mm) OD

1шт.

7

113-2232

BOLT,Hex, 3/8" - 16 x 5-1/2", Gr 5

(Mounts valve to channel)

2шт.

195-525

WASHER,3/8", SAE

4шт.

131-52

NUT,3/8"-16, GC

2шт.

8

REF

INSTRUCTION

VALVE - multiple check (See page 247)

1шт.

9

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

Adjustable, 5/8" tube

1шт.

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

S508629

SPARE PART (Used on units prior to PIN 6275370)

1шт.

Ref. no. 1 replaces hydraulic lines ref. no. 10 and connects to hydraulic lines ref. no. 11on page 172.

1шт.

S616269

BRACKET

CHANNEL - (Used on units with PIN 6275370 and after)

1шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Channel to boom

4шт.

192-23

LOCK WASHER,1/2"

4шт.

195-33

WASHER,1/2"

4шт.

11

S226294

SPARE PART Hydraulic

1шт.

Ref. no. 1 replaces hydraulic lines ref. no. 10 and connects to hydraulic lines ref. no. 11on page 172.

1шт.

12

113-2237

BOLT,Hex, 3/8" - 16 x 4-3/4", Gr 5

Mounts solenoid valve to channel

2шт.

195-525

WASHER,3/8", SAE

4шт.

131-52

NUT,3/8"-16, GC

2шт.

13

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Adjustable, 5/8" tube (Used on some earlier valves with tube fittings in ports P and C2) (Not shown)

1шт.

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

Adapter, 5/8" tube x 7/8"-14 x 1/2" NPT

2шт.

14

REF

INSTRUCTION

VALVE - solenoid (See page 252)

1шт.

15

S226295

SPARE PART Hydraulic

1шт.

16

REF

INSTRUCTION

VALVE - relief (See page 250)

1шт.

221-844

PLUG,Hex Soc, 1/2"-14

Pipe, NPT

2шт.

17

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - 5/8" tube x 7/8-14 x 1/2" NPT

2шт.

18

S99262

SPARE PART Mounting, relief valve (Used on units prior to PIN 6275249)

1шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

(Mounts bracket to channel)

2шт.

192-23

LOCK WASHER,1/2"

2шт.

280431

NUT,1/2"-13, G5

2шт.

19

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

5/8" tube (Used on some earlier valves with tube fittings in Port C1) (Not shown)

1шт.

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - 5/8" tube x 7/8"-14 x 1/2" NPT (Used on some valves with NPT fittings in Port C1)

2шт.

A21572

HOSE

Hydraulic, 1/2" (12.77 mm) x 300" (7620 mm) long

1шт.

21

S227311

SPARE PART Hydraulic

1шт.

Spuds on hydraulic lines, ref. no. 1, connect to hose, ref. no. 21 on page 172.

1шт.

22

S8703

HOSE

High pressure - 1/2" ID x 116" long - (Includes items 23 and 24)

4шт.

23

220-204

FITTING

COUPLING, reusable - (1/2" ID hose) - 7/8" - 14 female - 37 degree flared

8шт.

24

S28462

HOSE

High pressure (Bulk) - 4 pieces - 1/2" ID x 113" long

1шт.

25

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

(5/8" tube)

2шт.

26

S7982

COUPLING, BREAK AWAY

CONNECTOR - (5/8" tube) - 3/4"-16 male x 7/8"-14 male - 37 degree flared (Includes "O" ring)

2шт.

S6061

O-RING,0.639" ID x 0.09" Width

.644" ID x .818" OD

2шт.

27

CYLINDER, collector actuator - (For breakdown, see page 220

1шт.

28

S226292

SPARE PART Clamp mounting - (Mounts to Feller Buncher frame)

1шт.

29

S217389

CLAMP

Wood

1шт.

30

S87314

SPARE PART

1шт.

32

195-33

WASHER,1/2"

1шт.

33

S79656

CLAMP

1шт.

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Mounts clamp to boom guard

1шт.

192-23

LOCK WASHER,1/2"

1шт.

195-33

WASHER,1/2"

1шт.

34

S509063

GUARD ASSY.

Boom - (For mounting hardware to boom and clamps with hardware, see item 14 on page 172)

1шт.

Change in listing

1шт.

35

S88820

CLAMP

1шт.

195-33

WASHER,1/2"

1шт.

36

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

(1/2" tube), 37 degree flared

1шт.

Added listing

1шт.

37

S237403

SPARE PART Hydraulic - (Used on units with S/N 6275249 and after)

1шт.

Added listing

1шт.

38

S60833

ADAPTER

CONNECTOR, (1/2" tube) - 3/4"-16 male x 3/8"-18 male - 37 degree flared

2шт.

Added listing

1шт.

39

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

(1/2" tube), 37 degree flared

1шт.

Added listing

1шт.

40

S237404

SPARE PART Hydraulic - (Used on units with S/N 6275249 and after)

1шт.

Added listing

1шт.

41

113-15

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

2шт.

Added listing

1шт.

42

195-518

WASHER,1/4", SAE

2шт.

Added listing

1шт.

43

86625061

NUT,1/4"-20, GB

2шт.

Added listing

1шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
