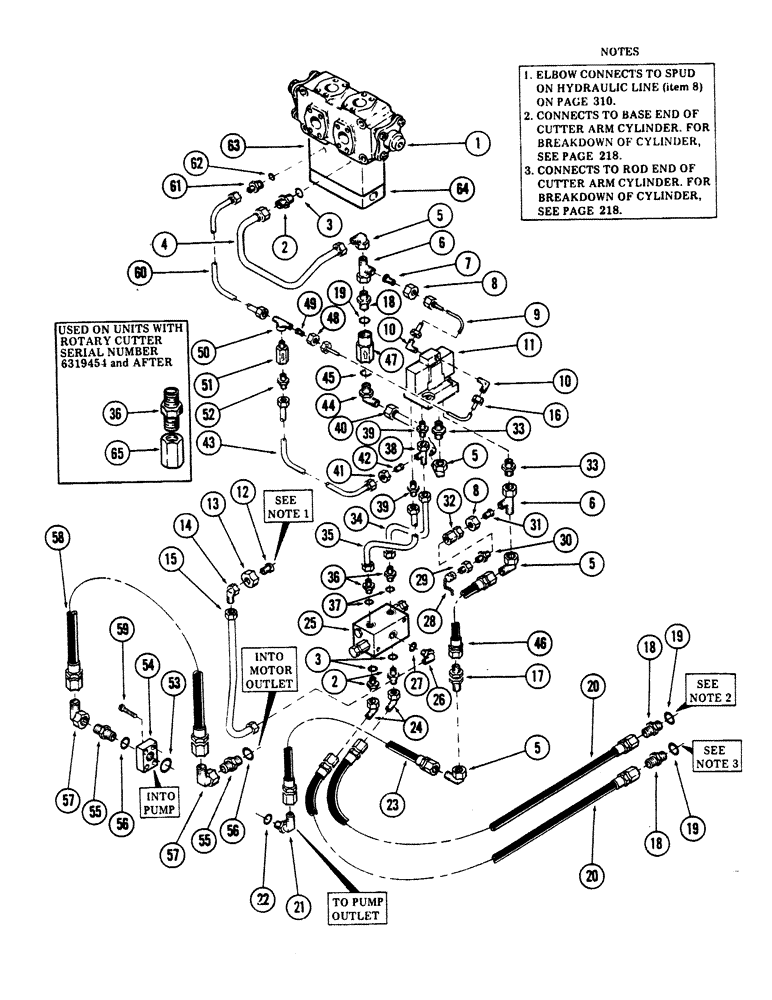

Запчасти Case 40BLC (314) - ROTARY CUTTER HYDRAULICS, (USED WITH ROTARY CUTTER) (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE, divering - (For breakdown, see page 352)

1шт.

2

S7982

COUPLING, BREAK AWAY

CONNECTOR - (5/8" tube) - 3/4"-16 male x 7/8"-14 male - 37 degree flared

3шт.

3

S6061

O-RING,0.639" ID x 0.09" Width

.644" ID x .818" OD

3шт.

4

S232123

TUBE ASSY.,625" OD

SPARE PART LINE, hydraulic

1шт.

5

S10358

ELBOW

90 degree swivel - 7/8"-14 male x 7/8"-14 male - 37 degree flared

4шт.

6

S60432

TEE, swivel - (5/8" tube) - 7/8"-14 male x 7/8"-14 male x 7/8"-14 male - 37 degree flared

2шт.

7

S108782

ADAPTER

Reducing - (5/8" to 1/4" reduction) - 7/16"-20 male - 37 degree flared

1шт.

8

S6276

NUT

Sleeve - (5/8" tube) - 7/8"-14 female - 37 degree flared

2шт.

9

LINE, hydraulic - (See page 318 for new arrangement)

1шт.

Added listing

1шт.

10

S63425

ELBOW

90 degree - (1/4" tube) - 7/16"-20 male x 1/8" NPT male

2шт.

11

REF

INSTRUCTION

VALVE, directional - (For breakdown, see page 350)

1шт.

12

S101833

ADAPTER

Reducing - (3/4" to 1/2" reduction) - 3/4"-16 male - 37 degree flared

1шт.

13

S6277

NUT

Sleeve - (3/4" tube) - 1-1/16" - 12 female - 37 degree flared

1шт.

14

S10357

ELBOW

90 degree swivel - (1/2" tube) - 3/4"-16 male x 3/4"-16 female - 37 degree flared

1шт.

15

S232126

LINE,0.50" OD

Hydraulic

1шт.

16

LINE, hydraulic - (See page 318 for new arrangement)

1шт.

Added listing

1шт.

17

S103697

FITTING

ADAPTER - (5/8" tube) - 7/8"-14 male x 7/8"-14 male - 37 degree flared

1шт.

18

S7967

CONNECTOR, ELEC

CONNECTOR (5/8" tube) - 1-1/16"-12 male x 1-1/16"-12 male - 37 degree flared

3шт.

19

S6065

RING

"O", .924" ID x 1.156" OD

3шт.

20

S8584

HOSE ASSY.,12.70 mm ID x 939.80, SAE 100R2

High pressure - 1/2" ID x 37" long - (With 7/8"-14 female pressed on couplings)

2шт.

21

S7940

ADAPTER

ELBOW, 90 degree adjustable - (5/8" tube) - 7/8"-14 male x 7/8"-14 male

1шт.

22

S6063

RING

SPARE PART "O", .755" ID x .949" OD

1шт.

23

S8578

HOSE

High pressure - 1/2" ID x 26" long - (With 7/8"-14 female pressed on couplings)

1шт.

24

S9491

ELBOW

45 degree swivel - (5/8" tube) - 7/8"-14 male x 7/8"-14 female - 37 degree flared

2шт.

25

REF

INSTRUCTION

VALVE, dual relief - (For breakdown, see page 348)

1шт.

26

S7939

ELBOW

90 degree adjustable - (1/2" tube) - 3/4"-16 male x 3/4"-16 male - 37 degree flared

1шт.

27

S6061

O-RING,0.639" ID x 0.09" Width

"O", .644" ID x .818" OD

1шт.

28

S206608

CAP

Dust

1шт.

29

S206607

DISC

DISCONNECT, quick

1шт.

30

S62655

NIPPLE, LUBE

NIPPLE ADAPTER - 1/4" NPT male x 1/4" NPT male

1шт.

31

S101831

REDUCER

ADAPTER, (5/8" to 1/4" reduction) - 7/16"-20 male - 37 degree flared

1шт.

32

S108815

ADAPTER

SPARE PART

1шт.

33

S7710

ADAPTER

(5/8" tube) - 7/8"-14 male x 1/2"-14 male - 37 degree flared

2шт.

34

S232125

TUBE ASSY.,0.5" OD x 3, 5.34" L

LINE, hydraulic

1шт.

35

S232127

TUBE ASSY.,0.5" OD x 5.06, 7.44" L

SPARE PART LINE, hydraulic

1шт.

36

S7963

FITTING

CONNECTOR - (1/2" tube) - 3/4"-16 male x 3/4"-16 male - 37 degree flared

3шт.

37

S6061

O-RING,0.639" ID x 0.09" Width

.644" ID x .818" OD

2шт.

38

S60461

TEE

Swivel - (1/2" tube) - 3/4"-16 male x 3/4"-16 male x 3/4"-16 male - 37 degree flared

1шт.

39

S7719

ADAPTER

(1/2" tube) - 3/4"-16 male x 1/2"-14 male - 37 degree flared

2шт.

40

S232124

LINE,0.625" OD x 5.56, 1.23" L

SPARE PART Hydraulic

1шт.

41

S6275

NUT

Sleeve - (1/2" tube) - 3/4"-16 female - 37 degree flared

1шт.

42

S101830

FITTING

ADAPTER, reducing - (1/2" to 3/8" reduction) - 9/16"-18 male

1шт.

43

S232331

SPARE PART LINE, hydraulic - (See page 318 for new arrangement)

1шт.

Added listing

1шт.

44

S7951

ELBOW

90 degree adjustable - (3/4" tube) - 1-1/16"-12 male x 1-1/16"-12 male - 37 degree flared

1шт.

45

S6065

RING

"O", .924" ID x 1.156" OD

1шт.

46

S8577

HOSE

High pressure - 1/2" ID x 20" long - (With 7/8" - 14 female pressed on couplings)

1шт.

47

REF

INSTRUCTION

VALVE, check - (For breakdown, see page 342)

1шт.

48

S6274

NUT

Sleeve - (3/8" tube) - 9/16"-18 female - 37 degree flared (Used on units with S/N 450 thru 6275248)

1шт.

49

S101834

REDUCER

ADAPTER, (3/8" to 1/4" tube reduction) - 7/16"-20 male - 37 degree flared - (Used on units with S/N 450 thru 6275248)

1шт.

50

S101707

TEE

(3/8" tube) - 9/16"-18 male x 9/16"-18 male x 1/4" NPT female - 37 degree flared

1шт.

51

S110789

VALVE

Check - (Supersedes S229044)

1шт.

52

S60835

ADAPTER

(3/8" tube) - 9/16" - 18 male x 1/4" NPT male - 37 degree flared

1шт.

53

S5807

O-RING,0.984" ID x 1.262" OD x 0.139"

.984" ID x 1.250" OD

1шт.

54

S230045

FITTING

SPARE PART Block

1шт.

55

S7548

COUPLING, BREAK AWAY

CONNECTOR - (3/4" tube) - 7/8"-14 male x 1-1/16"-12 male - 37 degree flared

2шт.

56

S6063

RING

SPARE PART "O", .755" ID x .949" OD

2шт.

57

S10359

ELBOW

90 degree swivel - (3/4" tube) - 1-1/16"-12 male x 1-1/16"-12 female - 37 degree flared

2шт.

58

S15468

HOSE

High pressure - 3/4" ID x 28" long - (With 1-1/16"-12 female pressed on couplings)

1шт.

59

S3519

CAPSCREW

3/8" NC x 1-1/4" gr 8 - (Hexagon socket head)

4шт.

60

S232129

TUBE ASSY.,0.375" OD

LINE, hydraulic

1шт.

Added listing

1шт.

61

S7962

FITTING

CONNECTOR - (3/8" tube) - 3/4"-16 male x 7/8"-14 male - 37 degree flared

1шт.

62

S6061

O-RING,0.639" ID x 0.09" Width

.644" ID x .818" OD

1шт.

63

REF

INSTRUCTION

ADAPTER - (See item 4 on page 310)

1шт.

64

REF

INSTRUCTION

ADAPTER - (See item 26 on page 310)

1шт.

65

S114792

NOZZLE CAP

VALVE, orifice - (Used on units with rotary cutter attachment S/N 6319454 and after)

1шт.

Added listing

1шт.
